Slate is a versatile, elegant building material with a fine-grained, foliated metamorphic rock structure. Formed through low-grade regional metamorphism of shale or mudstone, the slate’s ability to split into thin, smooth sheets along planar surfaces makes it ideal for various construction applications. Due to its dense structure and low water absorption rate, it comes in gray, black, purple, green, red, and brown colors, with durability, fireproofing, and waterproofing qualities. Common uses of slate include roofing, flooring, wall cladding, countertops, and blackboards. Its geological origins and properties, including hardness of 3-4 on the Mohs scale, quartz composition, and specific gravity of 2.65-2.8, make it a valuable natural stone for construction. Slate is sold based on type, origin, size, thickness, and finish, with roofing slate prices ranging from $50-150 (€46.93-136.11, £41.73-125.18) per ton for lower grade and $200-300 (€188.54-282.80, £167.31-250.96) per ton for high-quality slate. It is commonly sold by square meter or metric ton, depending on the product and use. The weight of slate varies with thickness, making it significantly heavier than common roofing materials like asphalt shingles. Slate is fire-resistant, achieving an A1 rating, and exhibits outstanding water resistance with a low water absorption index of less than 0.4%. Its acoustic properties include a high sound absorption coefficient and a sound transmission class (STC) rating, effectively reducing echoes and blocking airborne sound transmission. Future design trends for slate include sustainability, contemporary style, biophilia, customization, and integration with smart technology. Maintenance and longevity are ensured through proper installation, inspections, and minimal environmental impact during quarrying and manufacturing. Slate can be recycled and upcycled, contributing to sustainability efforts. Architects prefer slate in modern house buildings for its durability, versatility, sustainability, and integration with smart technology. Famous products made of slate found in houses include slate roofing, floor/wall tiles, fireplace surrounds, and various home goods. In modern architecture, slate is used for cladding material, roofing expression, and surfaces to achieve sustainability goals.
What is slate?

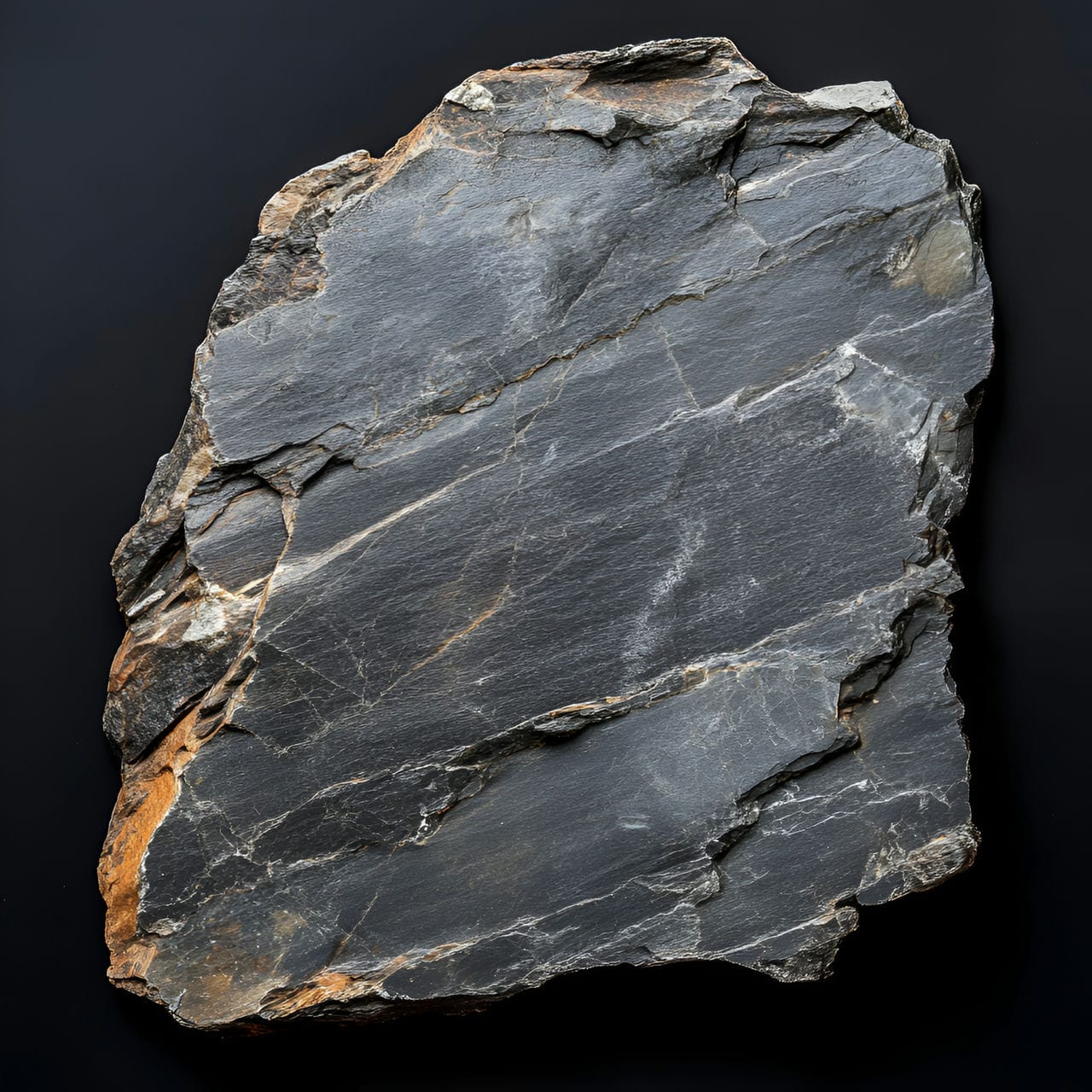

Slate is a fine-grained, foliated metamorphic rock that forms when shale or mudstone is subjected to low levels of heat and pressure through metamorphism. It gets its name from its ability to split into thin, smooth sheets along planar surfaces caused by the realignment of minerals during metamorphism. This feature makes it useful as a building material. Slate comes in various colors, including gray, black, purple, green, red, and brown. Its color depends on factors like mineral composition and the level of metamorphism. Slate is durable, fireproof, and waterproof due to its dense structure. It also has a shallow rate of water absorption, less than 0.4%, making it resistant to water damage and frost.

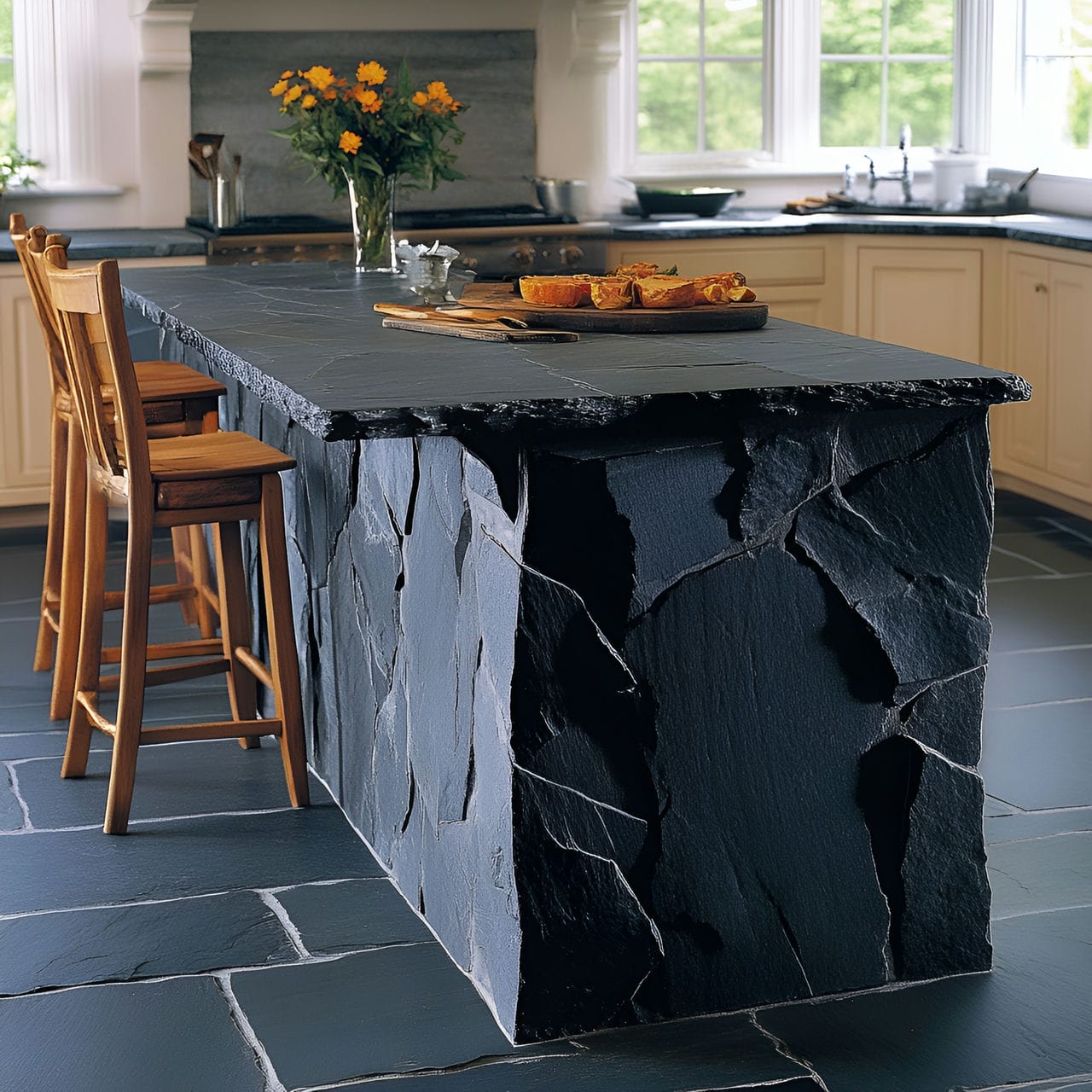

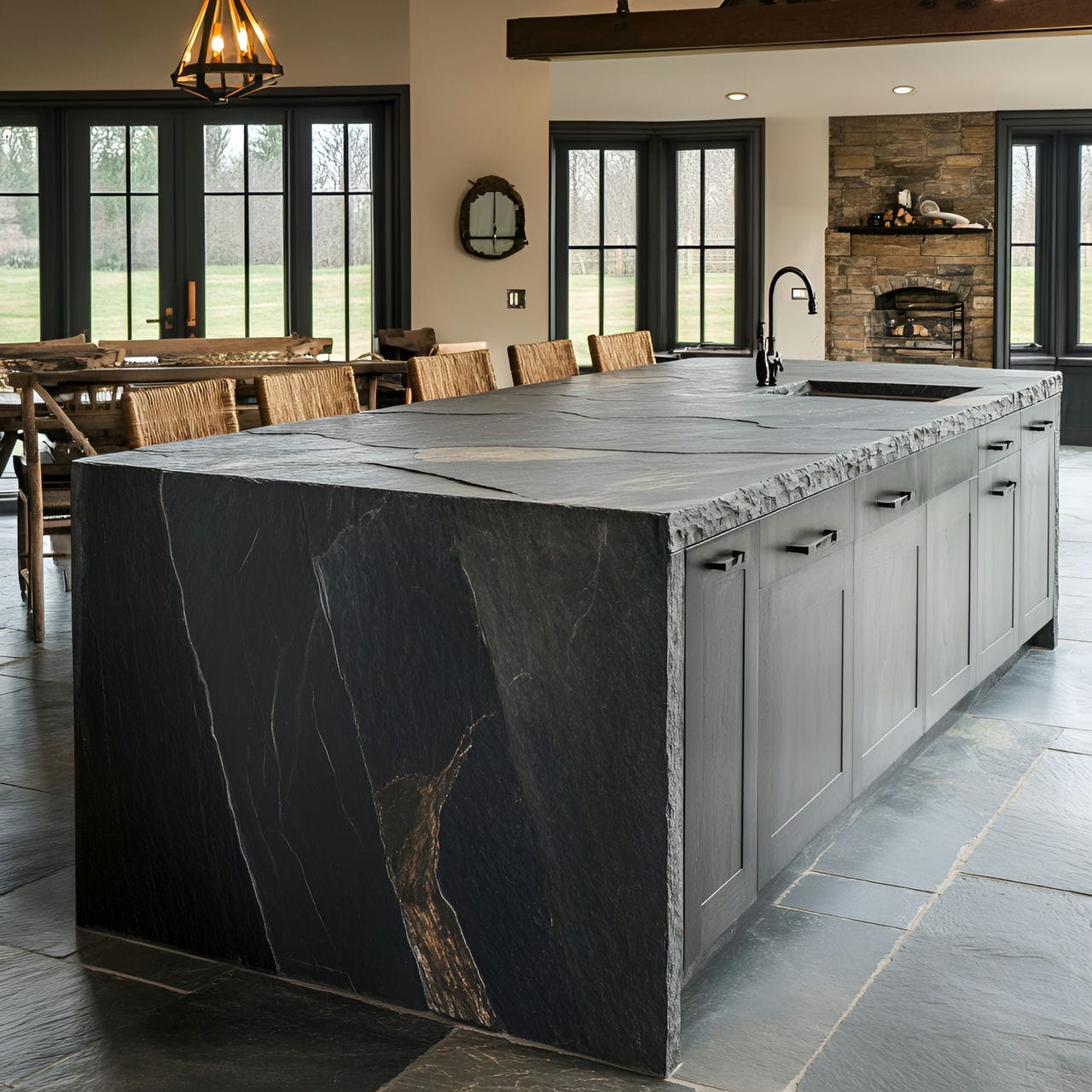

Common uses of slate in construction include roofing, flooring, wall cladding, countertops, and blackboards/chalkboards. As a roofing material, slate is popular for its longevity, aesthetics, and low maintenance requirements – slate roofs can last over 100 years. Slate floors and walls also provide durable and attractive options for homes. Slate’s chemical resistance allowed it to be used as chemistry lab table tops historically. Slate has a hardness of 3-4 on the Mohs scale, meaning it is softer than granite but harder than calcite or gypsum. Its specific gravity ranges from 2.65-2.8. Slate’s main mineral composition is quartz, muscovite/illite, chlorite, biotite, and pyrite. Accessory minerals include apatite, graphite, kaolinite, magnetite, tourmaline, zircon, and feldspar. Understanding slate’s geological origins and material properties allows builders to use this versatile, natural stone.
How is slate created?
There are several ways slate is created. Firstly, slate forms through the metamorphosis of shale or mudstone under low temperature and pressure conditions, called low-grade regional metamorphism. Mudstone and shale are fine-grained sedimentary rocks originally deposited as layers of mud and clay on the floors of oceans, lakes, or river basins. Secondly, the key process of transforming shale and mudstone into slate is re-aligning clay mineral components into sheet silicate minerals like mica and chlorite. The sheet silicates orient themselves perpendicular to the pressure exerted by tectonic compression and consolidation. This realignment imparts the characteristic slaty cleavage to the metamorphic rock, allowing smooth splitting along planar surfaces. The color of the slate depends on factors like original composition and degree of metamorphism. Accessory minerals like iron sulfides and carbonaceous material also influence slate’s coloration. Thirdly, slate forms in dynamic tectonic environments like subduction zones where oceanic crust is forced underneath continental crust. The ocean floor sediments get scraped off the descending plate and plastered onto the overriding plate in accretion. Lastly, shale and mudstone units undergo heating and directed pressure as they are incorporated into the continent, leading to metamorphism. The low-grade conditions facilitate the growth of micas and chlorites aligned perpendicular to the compression. Higher pressures and temperatures would have formed higher-grade metamorphic rocks like schist or gneiss instead of slate.
In which part of the building is slate used?

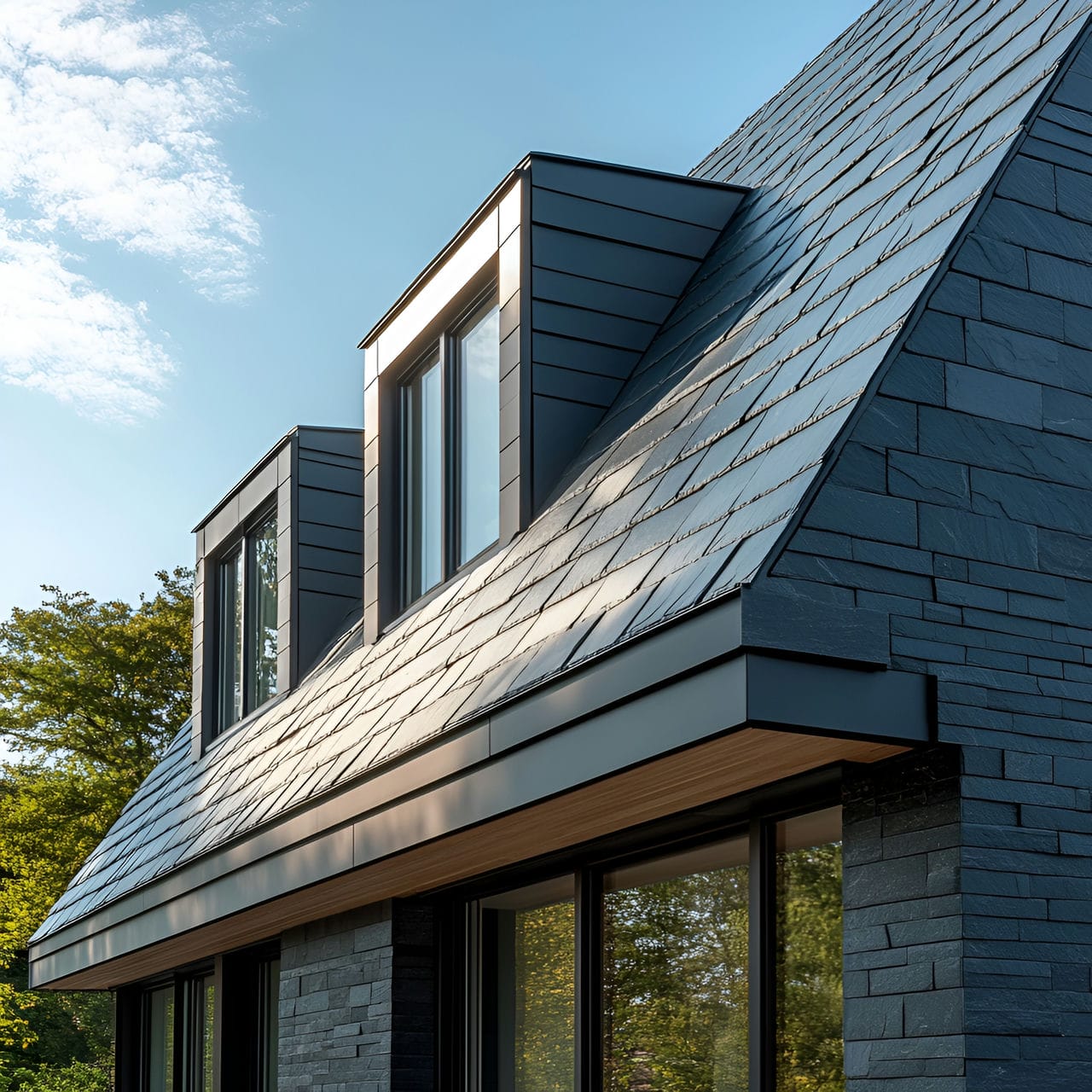

Roofs, floors, walls, and blackboards are the parts of the building where slate is used. Firstly, roofing is one of the most common applications for slate in construction. The slate is suitable as a durable, waterproof, and low-maintenance roofing material that can last for centuries. Its deficient water absorption is a key property providing frost and water resistance. Secondly, flooring is another major slate application, including use on room interior floors, exterior walkways, patios, stairs, and around pools. The slate floors are attractive and durable. Slate floor tiles are laid on mortar beds and grouted. Thirdly, slate can be used as an external wall cladding option. Slate may also find some use as interior wall paneling. Lastly, parts like laboratory table tops, electric switchboards, countertops, hearths, chimney caps, wainscoting, memorial tablets, and more are used. Slate’s properties, like chemical inertness, thermal stability, and moisture resistance, facilitate these specialized applications. The slate is versatile as a building material that acts as a natural stone. Slate is a metamorphic rock traditionally used for roofing, flooring, and other applications. Its defining characteristic is that it splits into thin, smooth-surfaced layers, making it suitable for various building purposes.
What is the typical price of slate?
The price of slate can vary significantly depending on the stone’s type, origin, size, thickness, and finish. For roofing slate, the price generally ranges from $50-150 (€46.93-136.11, £41.73-125.18) per ton for lower-grade slate up to $200-300 (€181.54-282.80, £167.31-250.96) per ton for high-quality slate. The square usually sells standard roofing slate. At a low-grade price of $100 (€94.27, £83.66) per ton, a single square of 1⁄4 to 3⁄8-inch thick slate costs around $450-800 (€423.21-751.77, £375.47-667.85). Architectural grade slate in the same thickness can cost $1200-1800 (€1,127.05-1,690.58, £1,000.92-1,501.37) per square meter. Thicker slate, for applications like countertops and flooring, costs more per square foot. Countertop slate typically comes in thicknesses of 1⁄4 to 1⁄2 inch, with prices ranging from $10-30 (€9.43-28.28, £8.37-25.10) per square foot for lower grades up to $50-100 (€47.14-94.27, £41.83-83.66) per square foot for higher grades like black slate. Natural cleft and textured finishes also demand premium pricing.
How is slate sold?
Slate is most commonly sold by the square foot (square meter) or short ton (metric ton), depending on the product type and intended use. For roofing purposes, slate is usually sold by the square foot (square meter), referring to enough slate tiles to cover that roof space area. A standard square is enough slate to cover 100 square feet (9.29 square meters). Architectural grade roofing slate is generally sold by square feet in sizes like 2×2 feet (610×610 millimeters) or 2×1 feet (610×305 millimeters). Lower-grade slate may come in more random shapes and thicknesses to meet an average coverage quota per square foot. The slate is bundled onto pallets containing enough stone to cover 200 to 400 square feet (18.58 to 37.16 square meters). For flooring, countertops, blackboards, and other finishes, slate is sold by the square foot (square meter) based on the final dimensions needed, like 1×1 feet (305×305 millimeters) for tile flooring. Larger countertop slabs can be sold individually by final square foot pricing. The thickness and finish quality drive cost-per-square-foot rates. Standard thicknesses range from 3/16 inches (5 millimeters) to 1 1/4 inches (30 millimeters). Natural cleft finishes exhibit the classic slate texture, while textured, brushed, and polished finishes carry higher price points per square foot. Slate sold for structural uses like base and drainage aggregate comes by the short ton (metric ton), generally weighing 2,000 to 2,400 pounds (907 to 1,088 kilograms) per ton, depending on the slate variety. Landscaping décor slate is also packaged and priced by weight, sometimes sold by the individual piece for unique shapes and carved slate plant holders.
What is the availability of slate?
Slate is widely available worldwide. Firstly, slate availability depends greatly on the variety and source location. Classic slate belts are concentrated in parts of Europe like Spain, France, the United Kingdom, South America, and Asia. Some colors, like the purple slate of the western United States and black slate from Brazil and Argentina, are only found in those specific quarrying regions. Transportation costs and distance to the market can restrict competitively-priced accessibility. Secondly, market demand also impacts availability. As the premium natural roofing choice, slate supplies have strained under the growth in residential roofing. Hurricane storms and events also create spikes in demand and dwindling supply when regional repairs are needed simultaneously. Thirdly, successful quarrying depends on the quality and accessibility of the slate deposits, requiring ideal seams, consistency, and thicknesses profitable for extraction. Hillside terrain and remote locations mean slate quarrying relies heavily on experienced localized labor pools. Shortages of qualified slate workers can bottleneck production capabilities. The slate market also faces general consolidation as smaller quarries get acquired and focus on the most profitable slate grades and products. Combined with tighter environmental regulations on mining lands, unique slate varieties have declined over recent decades as larger conglomerates concentrate on mass production. Lastly, recycled and reclaimed slate from roof tear-offs and other demolition sites supplements some newly quarried stone. Salvage specialists collect and transport these materials to suppliers for resale. This makes reclaimed slate costlier than its new equivalents in most cases. If regional shortages or specialty shades are needed, reused vintage slate is important in meeting market availability.
What is the durability of slate?
Slate is an extremely durable building material, with a typical lifespan of over 100 years for roofing and facade applications. Its durability comes from its composition and structure, like a metamorphic rock made up of layered phyllosilicate minerals like muscovite, biotite, and chlorite that have been compressed under intense heat and pressure. This gives slate strength and hardness while allowing it to be split into thin, uniform sheets. A key factor in slate’s durability is its low water absorption, typically less than 0.4%. Slate has high resistance to chemicals, acids, pollution, and temperature extremes. It does not rust or decompose. Thermal expansion and contraction are minimal with temperature fluctuations. These properties allow slate to withstand decades of exposure to sun, rain, snow, and hail without significant deterioration.
What is the strength of slates?
Slate has moderate strength for a building stone, rating between 2.5 and 4 on the Mohs hardness scale. This means it is harder than limestone or soapstone but softer than granite or quartzite. The minerals’ sheet-like structure allows excellent cleavage along parallel planes, enabling the stone to be split into thin, uniform sheets while retaining integrity and strength. The compressive strength of slate ranges from 7,000 to 20,000 psi (48-137 mPA), depending on the variety. Flexural strength measures 4,000 to 15,000 psi (27-103 mPA). Its shear strength parallel to cleavage planes is 700 to 1,500 psi (4-10 mPA). These mechanical properties give slate adequate strength for most building uses. Properly installed slate roofs can bear substantial dead and live loads like snow and wind. Slate’s strength also enables it to be used in applications like flooring, wall cladding, and paving, where it endures foot traffic and other stresses.
What is the energy efficiency of slate?
Slate is an energy-efficient roofing and cladding material due to its natural thermal properties. Slate has a high heat capacity and density, which gives it substantial thermal mass. This allows the slate to absorb heat energy during the day and release it slowly overnight. In hot and cold climates, slate roofing helps moderate indoor temperatures, decreasing air conditioning or heating demand. This can lead to significant energy savings over the lifespan of the roof. Slate reflects a large percentage of solar radiation due to its dark color. A slate roof can lower surface temperature on hot sunny days by reflecting UV and infrared rays up to 30 to 50°F (1.11°C-10°C). This keeps heat from transmitting into the attic and interior spaces. In winter, the slate’s density and thermal mass retain heat and make it through the roof. Like other roofing materials, this warmth radiates steadily at night instead of quickly escaping.
What is the weight of the slate?
The weight of the slate varies primarily based on its thickness. Standard roofing slate is typically thick, 1/4″ to 3/8″ (6-10 millimeters). At this thickness range, slate weighs approximately 1,170 to 1,405 pounds (531 to 638 kilograms) per square. Heavier slate up to 1/2″ (12 millimeters) thick is also produced for custom architectural purposes, weighing around 1,870 pounds (848 kilograms) per roofing square. Slate is a significantly heavier material than other common roofing materials, such as asphalt shingles, at 235 pounds (107 kilograms) per square. The weight of the slate comes from its density and composition. Slate is a metamorphic rock comprising compressed mineral layers like mica and chlorite. The density is around 170 to 220 pounds per cubic foot (2,720 to 3,520 kilogram/m3), and slate is over twice as dense as concrete. This gives it substantial dead weight when used as roofing. Adding a slate roof to an existing structure may require reinforcing roof components to handle the increased weight. The weight and density of slate must also be accounted for in shipping and handling. A 1/4″ thick slate pallet contains approximately 13-16 squares, weighing 15,000 to 20,000 pounds (6,800 to 9,100 kilograms).
What is the fire resistance of slate?
Slate demonstrates fire resistance and is considered a non-combustible building material. Slate earns an A1 rating, meaning it does not contribute fuel to the spread of fire. Scientific testing on slate samples heated to temperatures up to 1,652 °F (900 °C) shows slate does not burn or release hazardous fumes when exposed to fire. This non-flammability makes slate roofing assemblies achieve Class A fire resistance ratings even when tested to strict standards like UL 790 or ASTM E108. During burning, the slate does experience physical and chemical changes that impact its structural integrity. At temperatures over 1,112 °F (600 °C), the slate’s color shifts to a reddish hue as iron oxides form, and its bending strength decreases due to mineral changes. After heating, the slate remains stable and intact, though with some cracking and breakage. This allows slate roofs to provide fire protection even when damaged. Compared to combustible roofing like asphalt shingles, slate is far less vulnerable to ignition from falling embers.
What is the water resistance of slate?
Slate has outstanding water resistance due to its low porosity and absorption. Slate water absorption index is typically less than 0.4%, and slate is considered impervious to water. Liquid water cannot penetrate the microscopic spaces between the slate’s compressed mineral layers. This makes slate highly resistant to damage from exposure to rain, snow, and moisture over its lifetime. The low water absorption of slate also provides exceptional frost resistance. Very little water is absorbed into the stone if the slate gets wet. So when temperatures drop below freezing, there is minimal water to expand and cause the slate to crack or spall. Slate remains dimensionally stable through freeze-thaw cycles. This durability against water and freezing is a key reason slate performs well as roofing in cold climates.
What are the acoustic properties of slate?
Slate has a relatively high sound absorption coefficient, meaning it absorbs sound rather than reflecting it from 0.02 at 125 Hz to 0.07 at 4000 Hz. This level of sound absorption helps reduce echoes and reverberation. Slate also has a high sound transmission class (STC) rating, effectively blocking airborne sound transmission. The high density and mass of slate are key to its good STC rating and ability to block sound effectively. The density, porosity, stiffness, and mass inherent in slate make it excellent at absorbing airborne sound to reduce reverberation while blocking sound transmission through walls, ceilings, or floors. Slate is also valued aesthetically as an attractive, durable surface material.
What is the flexibility and adaptability of slate?
Slate can be split into thin sheets while still retaining strength and durability. This allows the slate to be shaped into customized sizes and forms, facilitating creative uses. Slate’s flexibility also enables bending into curved forms like arches for various aesthetic effects. Slate remains a sturdy material that can withstand weather and lasts over 100 years, even when flexed or bent. Slate has a modular, layered structure that permits intricate patterning. This patterning ability enables slate walls and surfaces to transform spaces uniquely.
What are the future trends in design with slate?
The future trends in design with slate are sustainability, contemporary style, biophilia, customization, and smart technology. Firstly, slate will continue to gain popularity as an eco-friendly and sustainable building material. Architects and designers are increasingly specifying slate for its durability, longevity, and recyclability – all highly desirable sustainability attributes. Expect slate usage to grow in residential and commercial projects seeking green building certifications like LEED. Secondly, the slate will be used more frequently in contemporary, modern designs versus traditional applications. Slate’s flexibility in being cut thin, ability to curve, variety of colors, and modular patterning capacity allow creative new building forms from traditional to avant-garde. Slate walls, surfaces, flooring, landscaping, and decorative elements will transform both building exteriors and interiors in their original ways. Thirdly, the slate will feature prominently in biophilic design that connects people to nature. Using slate to bridge outdoor and indoor spaces promotes wellness by bringing the calming aspects of nature indoors. Lastly, slate will merge aesthetics with technology for customized building functionality. Digital fabrication and slate’s shaping capacity will enable new tailored building forms. Smart technologies like LED lighting integrated with slate walls and surfaces will create interactive architecture. Slate as a design constant will enable original, evolving architectural expression.
How is maintenance and longevity secured in slate?
Maintenance and longevity of slate can be ensured through proper installation, inspections, and minimal environmental impact. Firstly, proper installation using corrosion-resistant nails, bibs, hooks, and quality workmanship establishes a sound slate roof or wall structure at the outset. This prevents premature failures that would shorten service life. Annual inspections by slate further secure longevity by catching minor issues like damaged slates early before they escalate. Secondly, the slate requires ongoing maintenance or annual inspections, yearly gutter cleaning, replacing damaged slates, and occasional pressure washing to remove debris and stains. More intensive cleaning or re-sealing of slate surfaces every 5-7 years better protect against weathering. Lastly, minimal environmental impact during slate quarrying and manufacture preserves regional slate supplies for future repairs. Strict regulations protect quarry ecosystems and water tables, ensuring production sustainability. Damaged slate roofs or walls in vintage buildings are typically repaired versus replaced. Slate removed during renovations also gets re-used. This preservation and responsible production secures slate’s longevity as a building tradition.
Can slate be recycled and upcycled?
Yes, slate can be recycled and upcycled. Roofing slates removed during renovations or replacements often can be recycled. These intact slates get sorted, cleaned, and sold for reuse in new roofing or other applications. Damaged slates also contribute as they get crushed for landscaping aggregates, driveway materials, or slate flour for new slate products. Upcycling old slate into home goods like cheese boards, coasters, frames, or decor gives used slate renewed value. The production of scrap slate and broken pieces offers recycling potential. These scraps serve to manufacture items like slate plant pots, pavers, mulch, and slate chippings. Even slate dust finds uses as filler, additive, or colorant in cement, paints, and linoleum flooring.
Why do architects prefer slate, and in what techniques?
Architects prefer slate due to its durability, versatility, sustainability, and ability to integrate smart technology. Firstly, architects appreciate slate for its durability and longevity, with a service life exceeding 100 years. Comprised of highly compressed clay and mineral deposits, slate withstands weathering, resists moisture damage, and requires little maintenance. This saves clients money over time versus replacing shorter-lived materials. Secondly, slate offers versatility in colors, textures, sizes, and shapes to realize diverse design aesthetics from traditional to modern. Slate can be split into thin sheets, cut precisely, or bent into curves while retaining strength. Varied modular layouts using slate pieces of different orientations generate facades. Thirdly, slate achieves sustainability credentials valued by today’s designers, including recyclability, low carbon footprint, and low embodied energy. Slate also lacks toxic materials, unlike some building products. These environmental benefits align with progressive architectural principles. Digital modeling informs custom cutting of slate units and fabrication of mounting systems to achieve intricate building envelopes. Lastly, integrating smart technologies like LED lighting or solar cells into slate facades and roofs produces interactive architecture matching the slate’s timeless qualities with innovation. Slate construction techniques fuse traditional craft with contemporary digital processes to connect with human architectural vision.

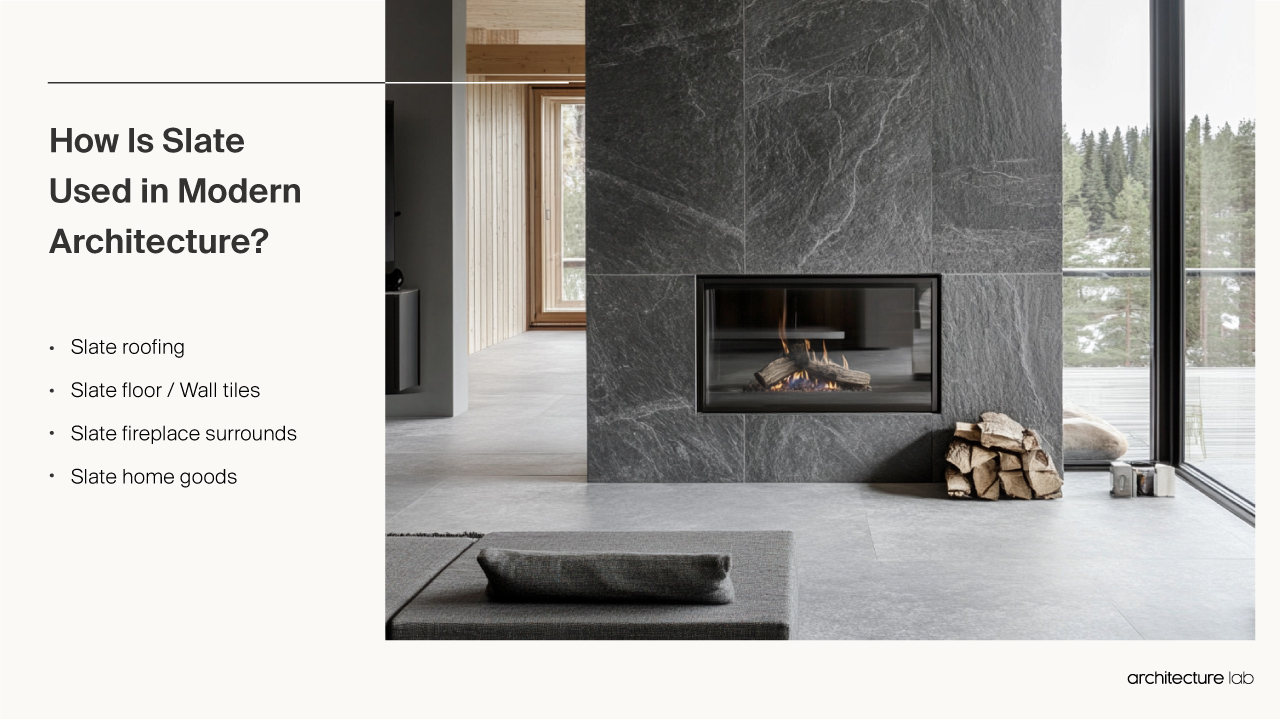

How is slate used in modern architecture?

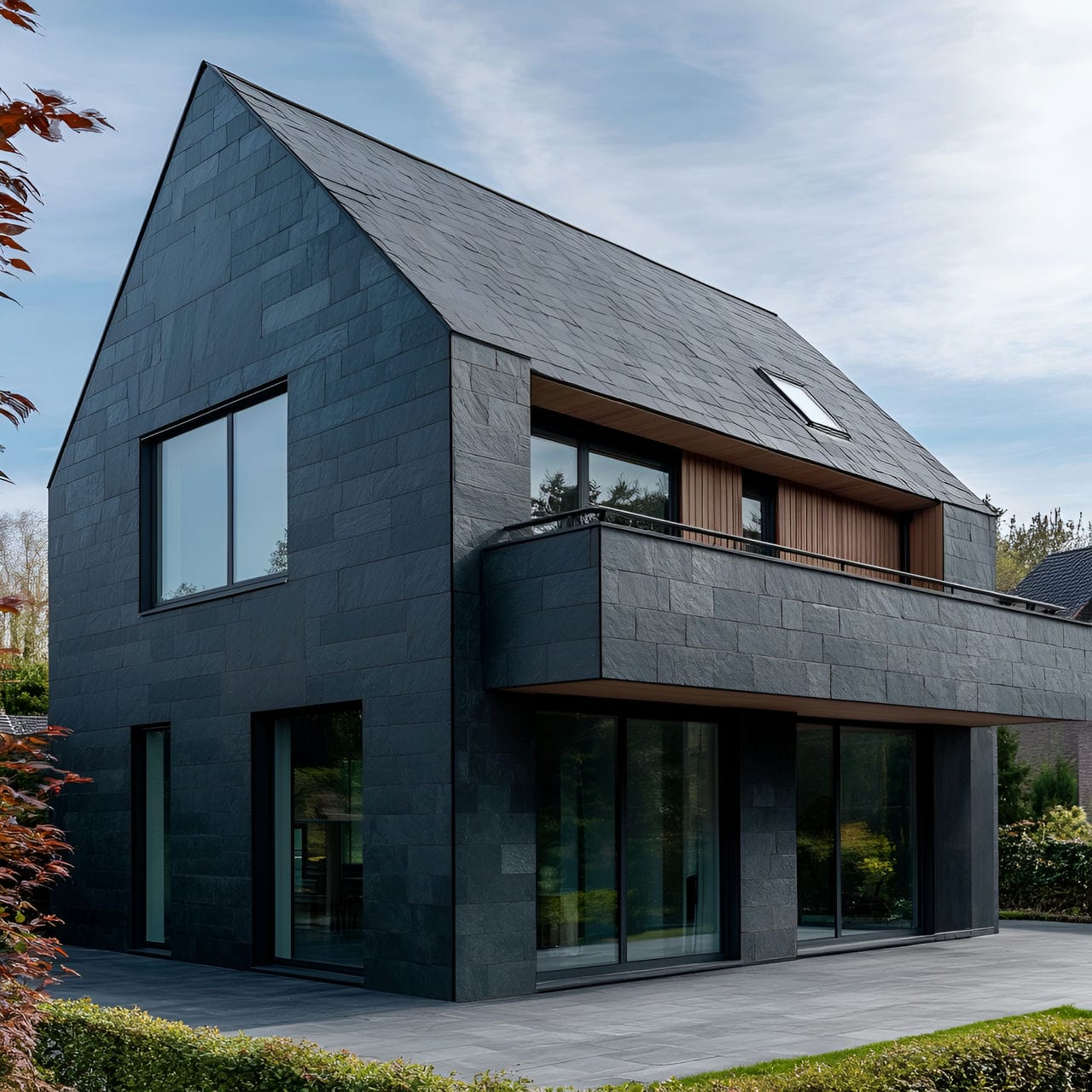

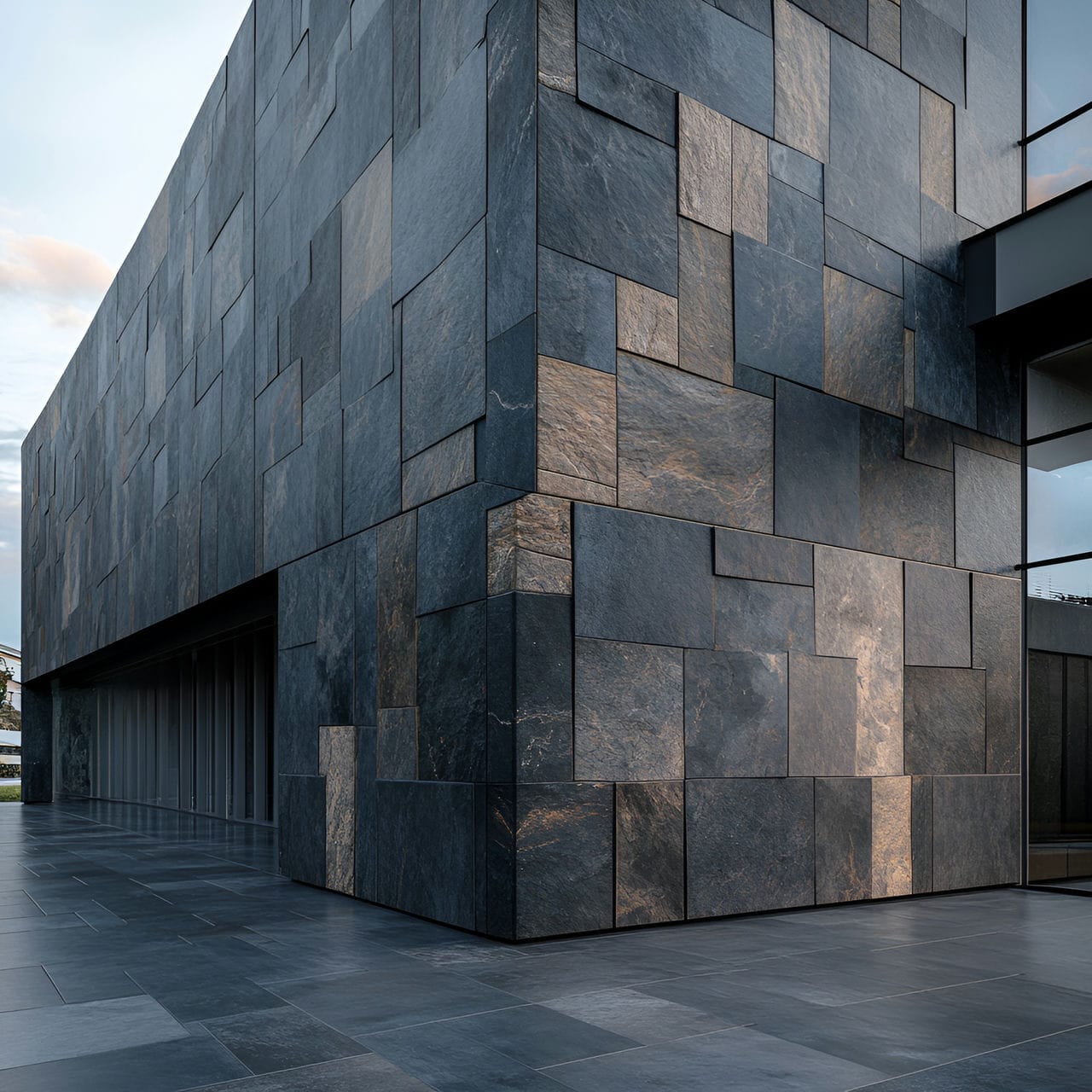

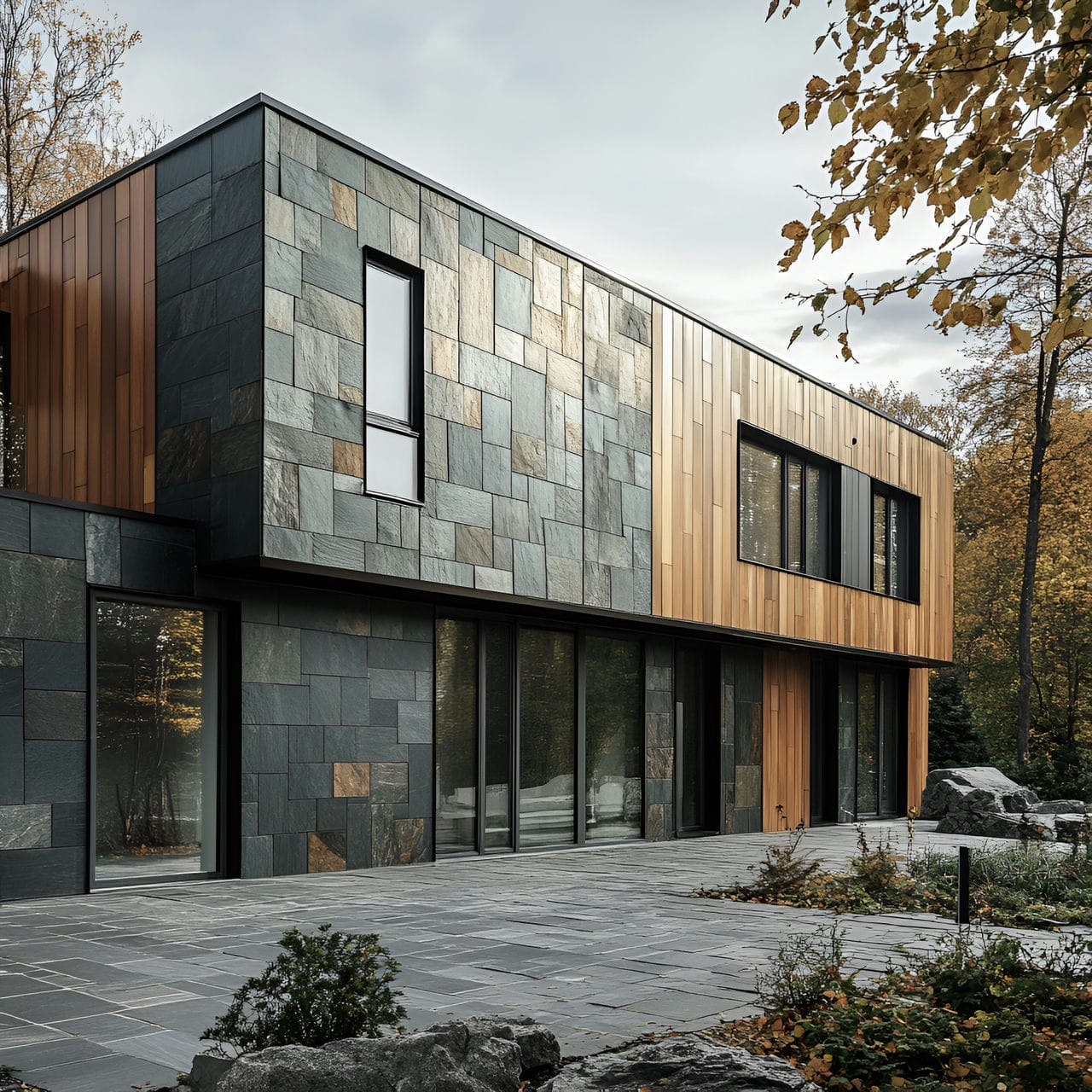

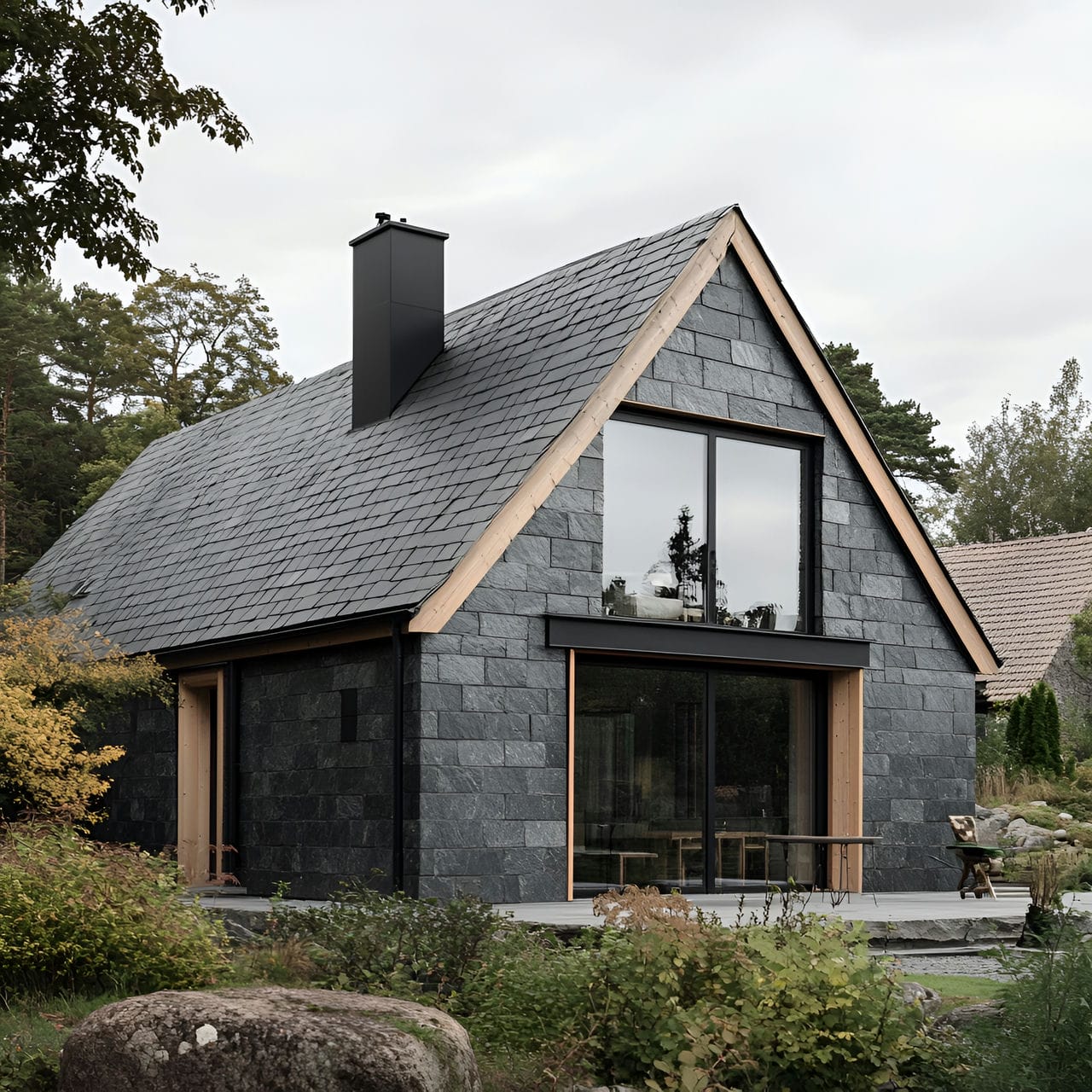

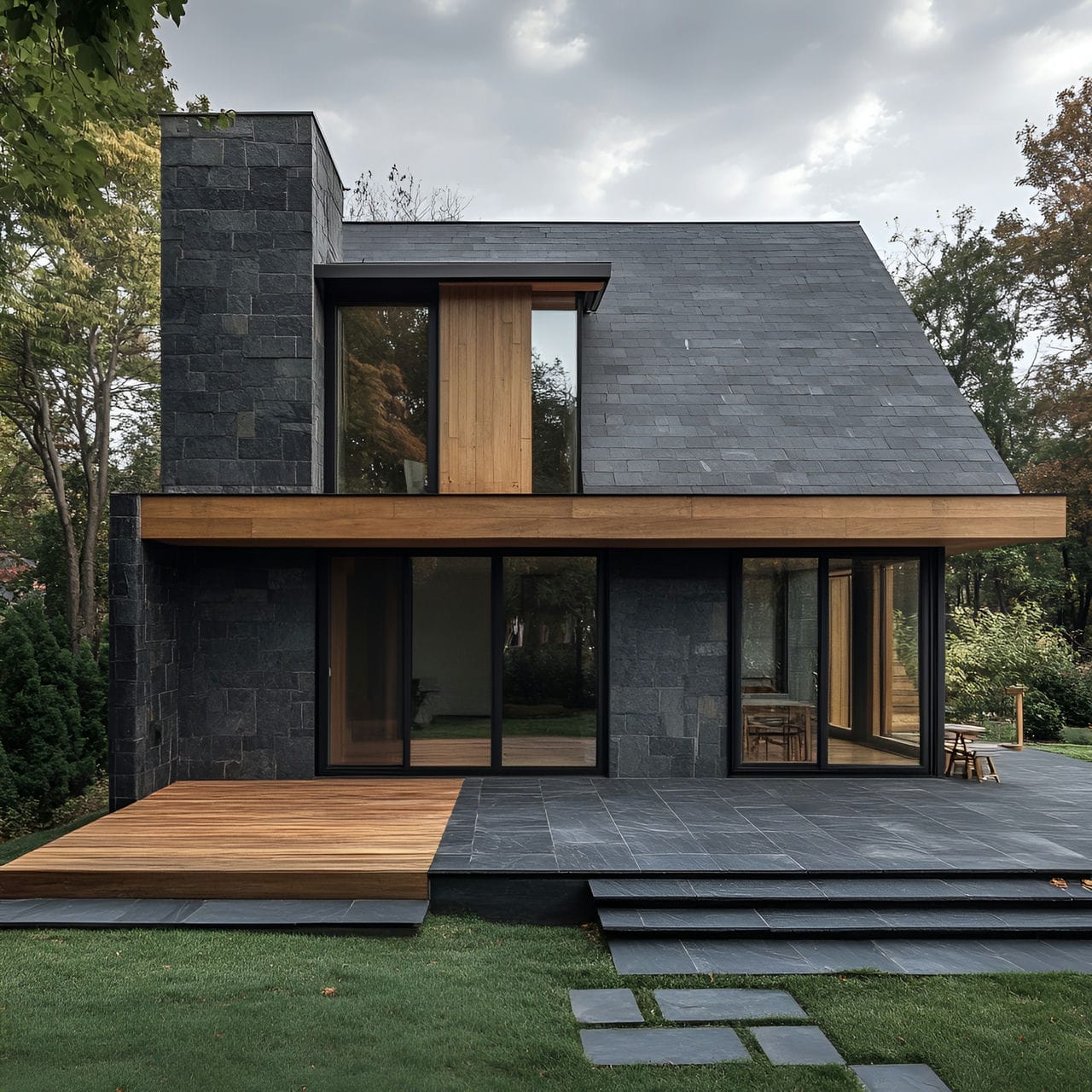

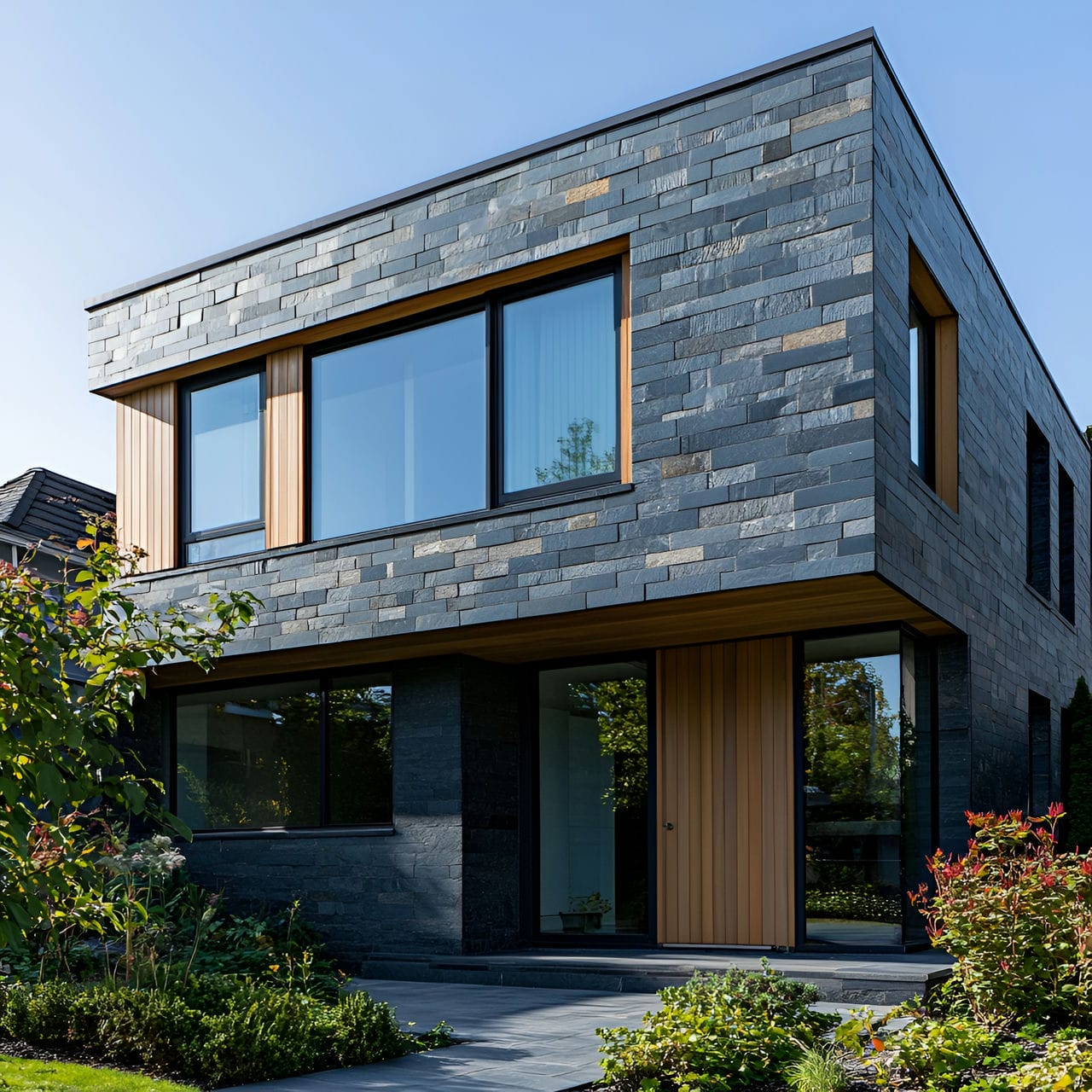

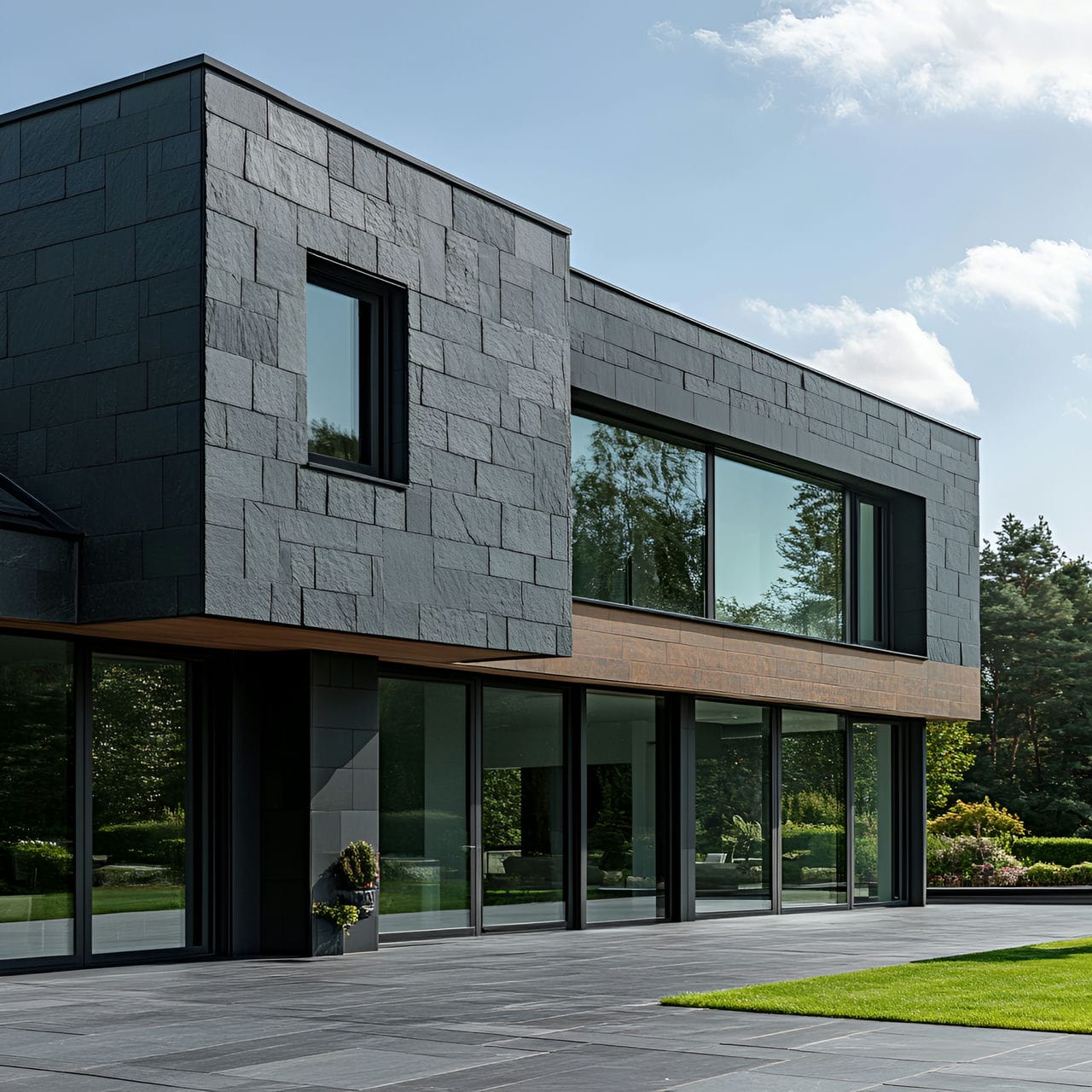

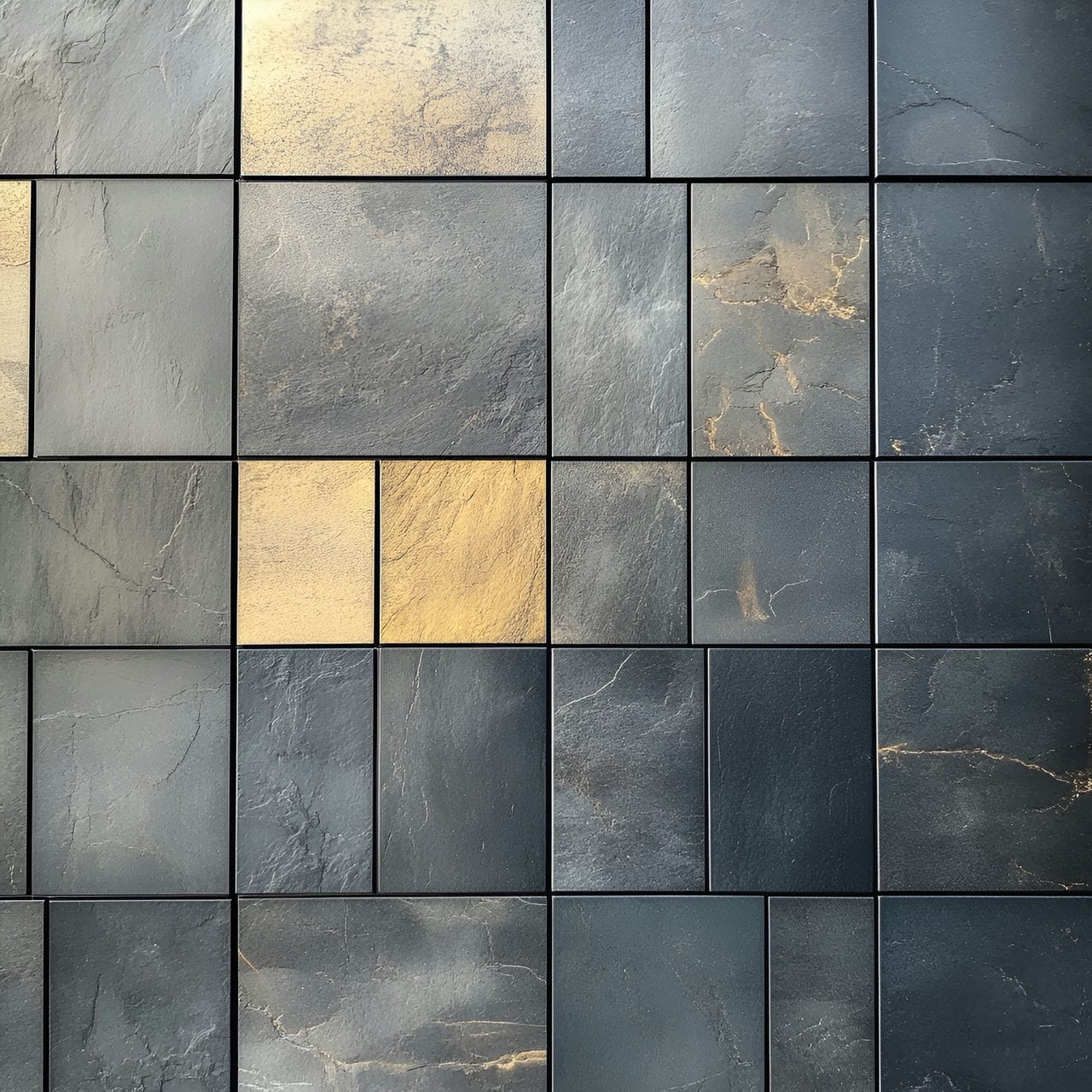

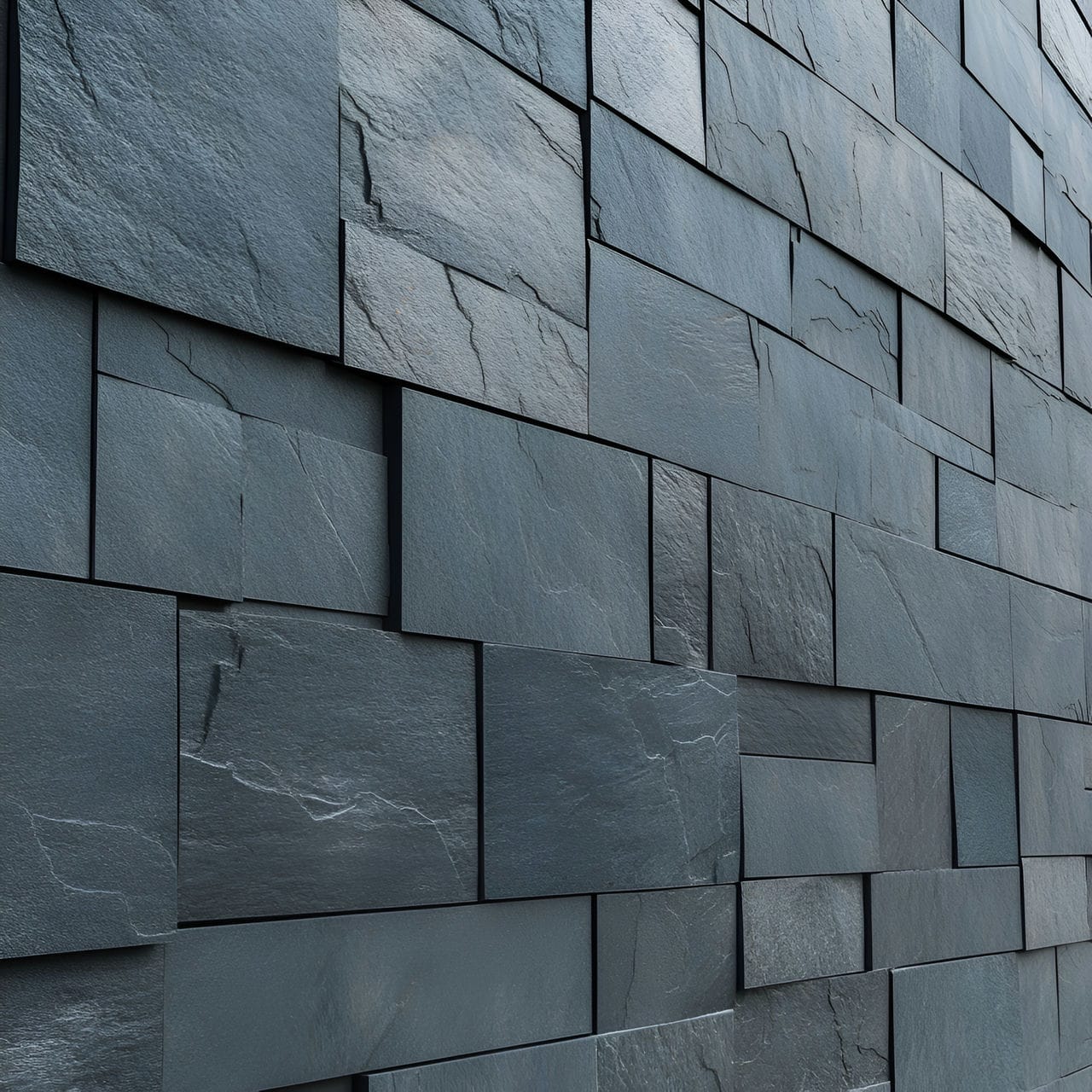

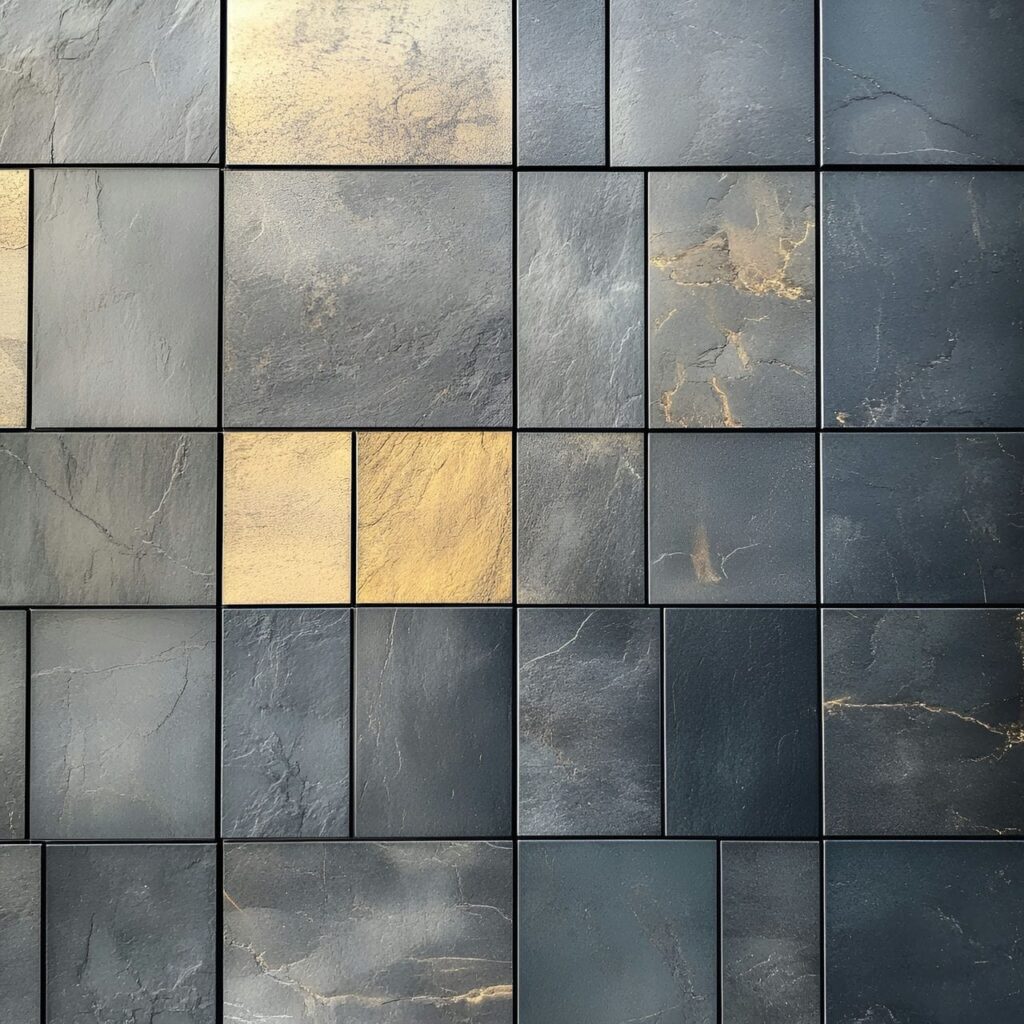

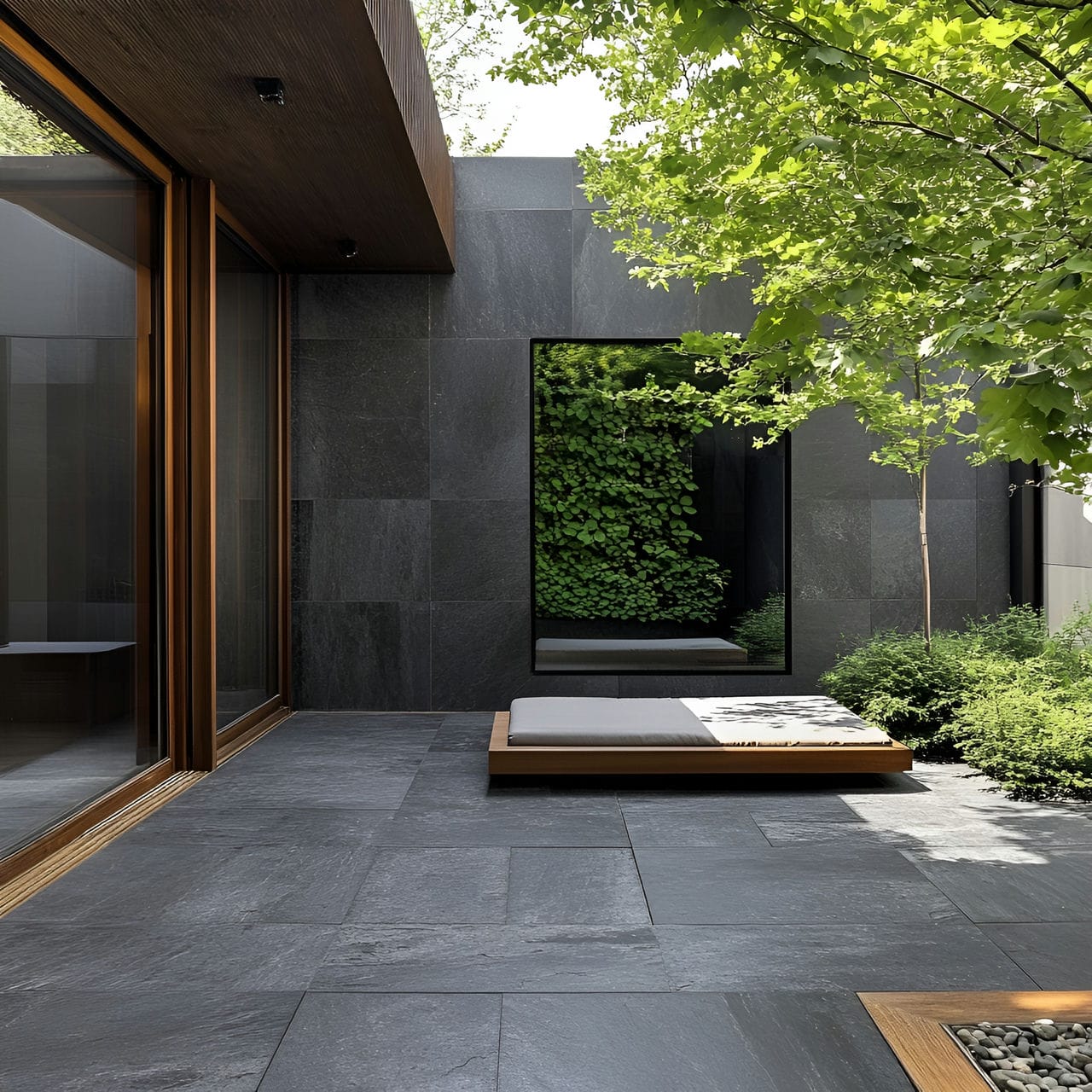

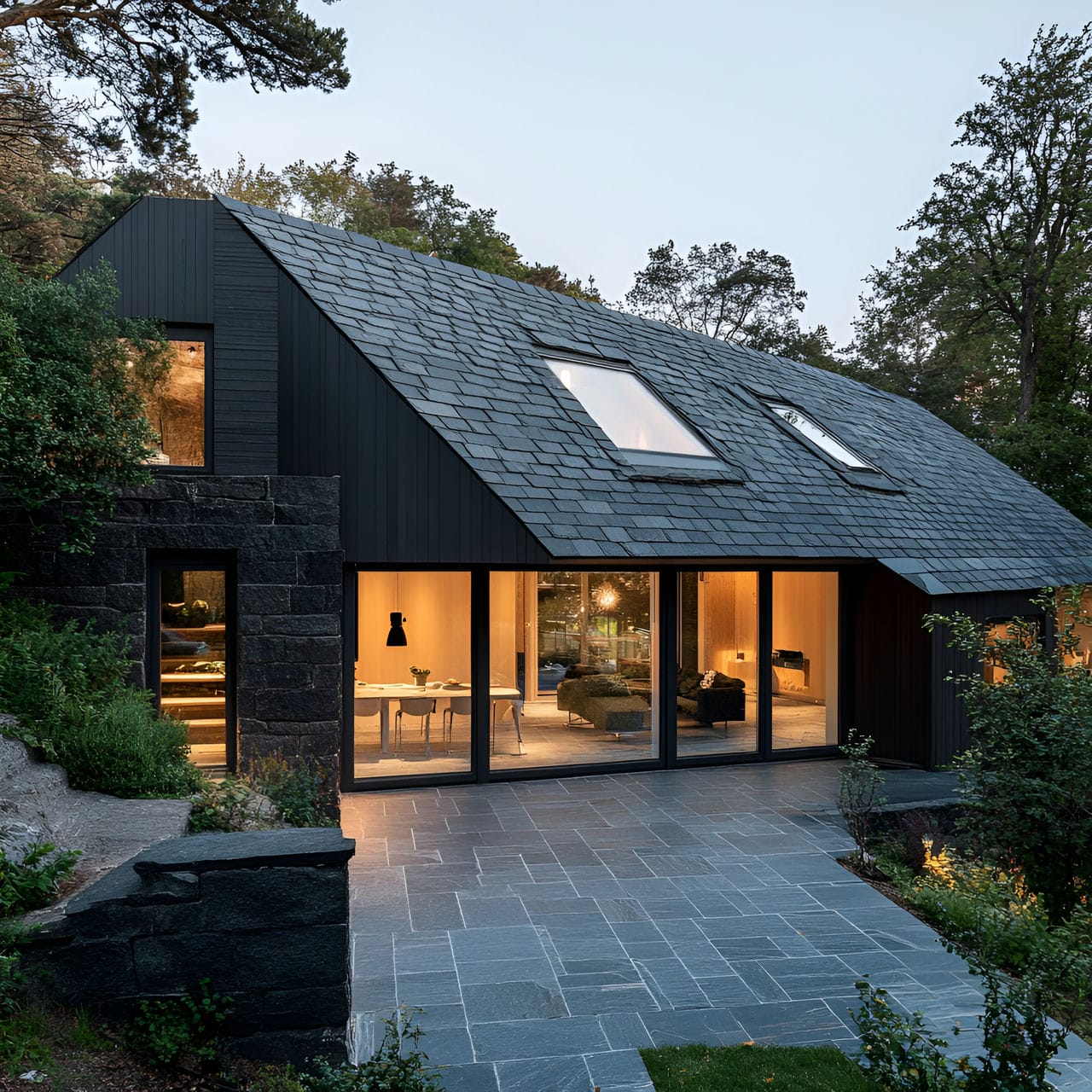

Slate is used in modern architecture for cladding material, modern roofing expression, slate surfaces, and sustainability goals. Firstly, slate is increasingly employed as a cladding material for building facades in contemporary designs. Slate cladding offers aesthetic appeal from its natural texture and color variations. Architects utilize slate façade systems like Cupa Pizarras’ Cupaclad that accommodate creative patterns and customized layouts matching a project’s vision. Secondly, slate roofing finds new modern expression through experimentation with traditional forms. Architects reshape sloped slate roofs using unconventional angles, pitches, and details reflecting modern geometries and styles. Thirdly, slate surfaces like floors and walls employ cutting-edge technologies for interactive architecture. Integrating lighting, media, and sensors into slate finishes produces adaptable spaces interacting with occupants. Fourthly, slate achieves sustainability goals like LEED credits for modern eco-conscious design. Slate cladding and roofing qualify as green building materials. Lastly, slate products increasingly appear across diverse applications in contemporary projects, from landscaping to home decor. Slate has bold, neutral colors, pleasing textures, and custom fabrication capacity to enable original furniture, artwork, and decorative statements indoors and out. Slate is a contemporary medium that carries ancient geology’s profound legacy.
What are the most famous products made of slate are found in houses?
Listed below are the most famous products made of slate found in houses:

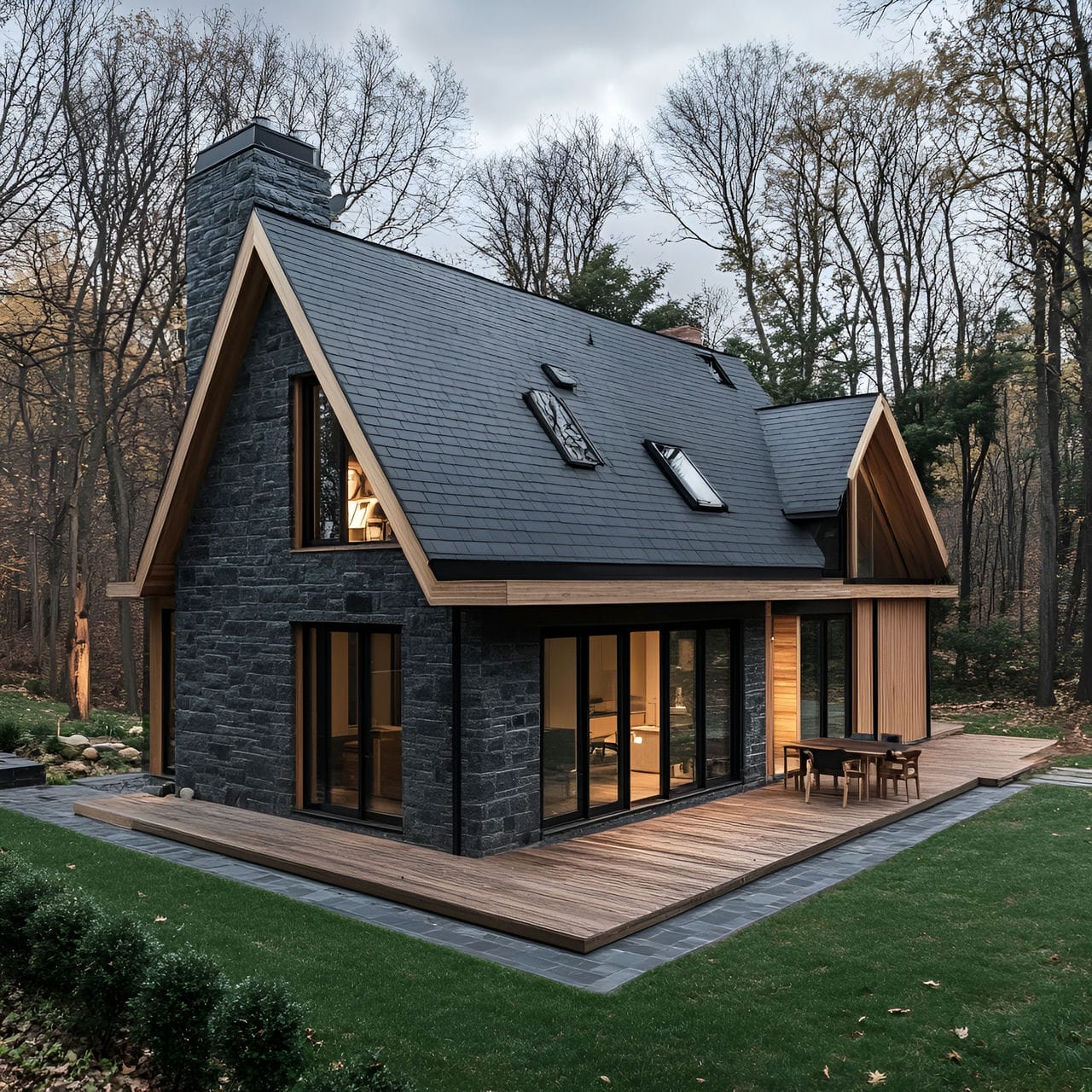

- Slate Roofing: Slate roofing is the most famous use of slate in residential architecture. Slate has extreme durability, longevity exceeding 100+ years, protective qualities, and distinctive beauty. Slate roofing graces iconic historic homes and modern houses today. It is a timeless, upscale look that always stays in style.

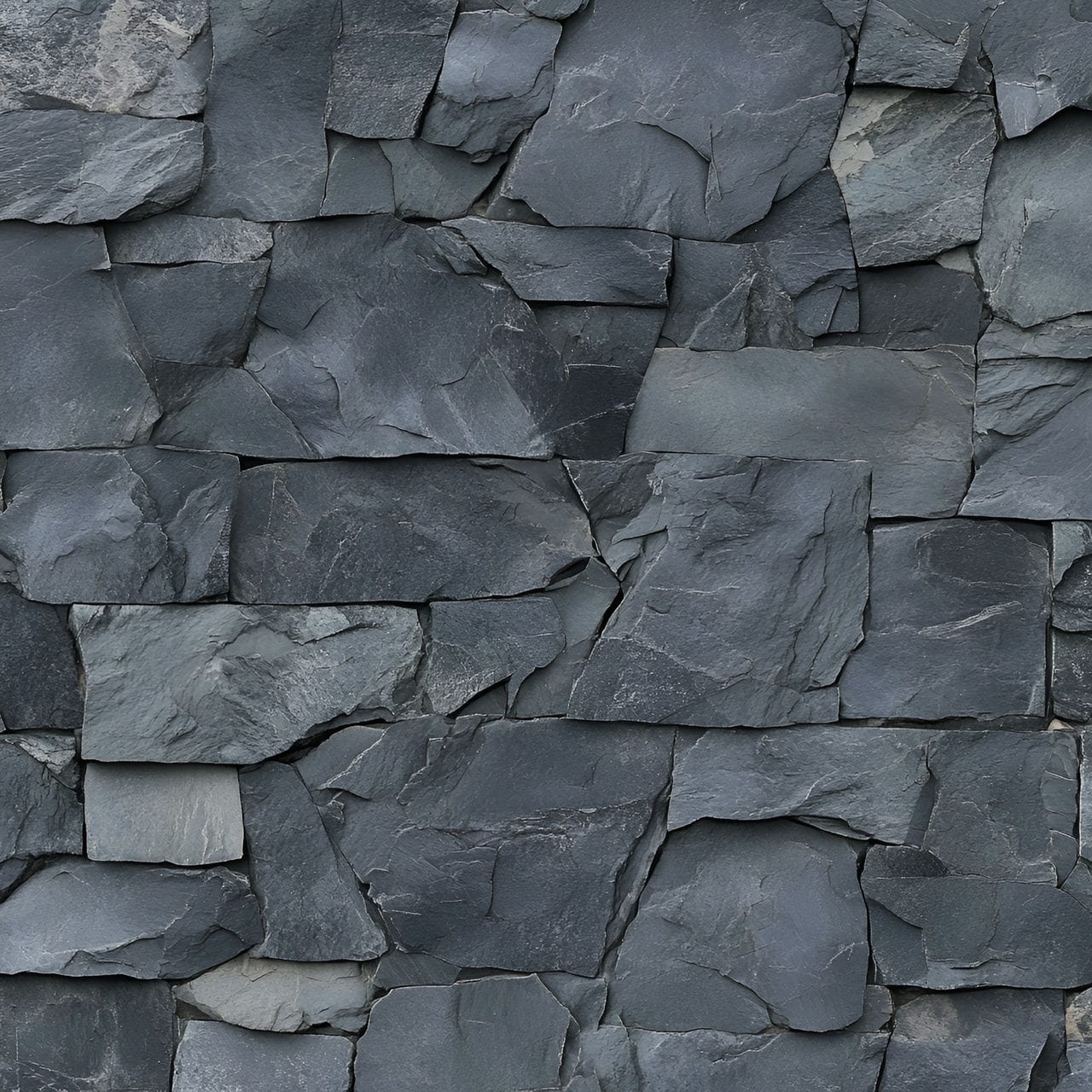

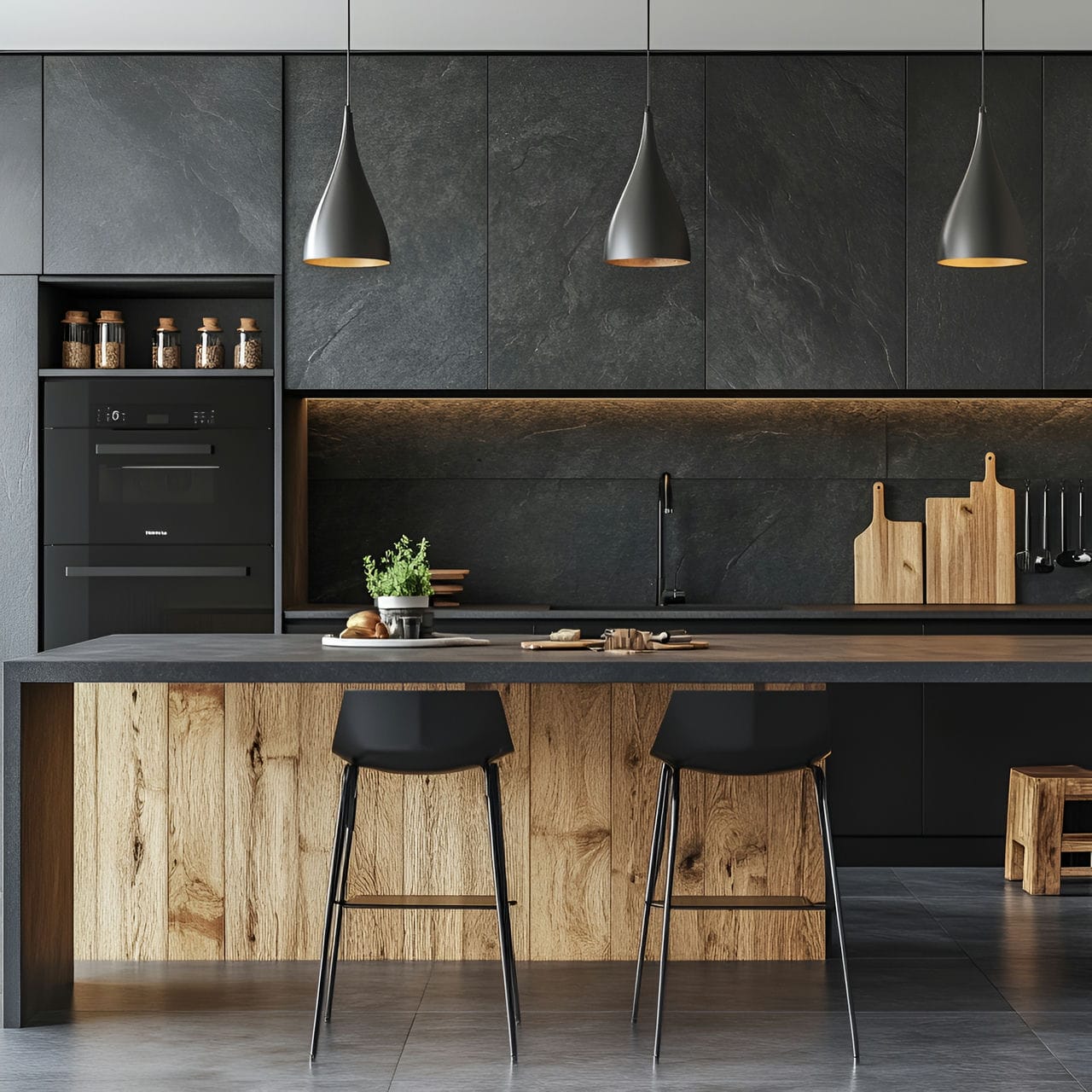

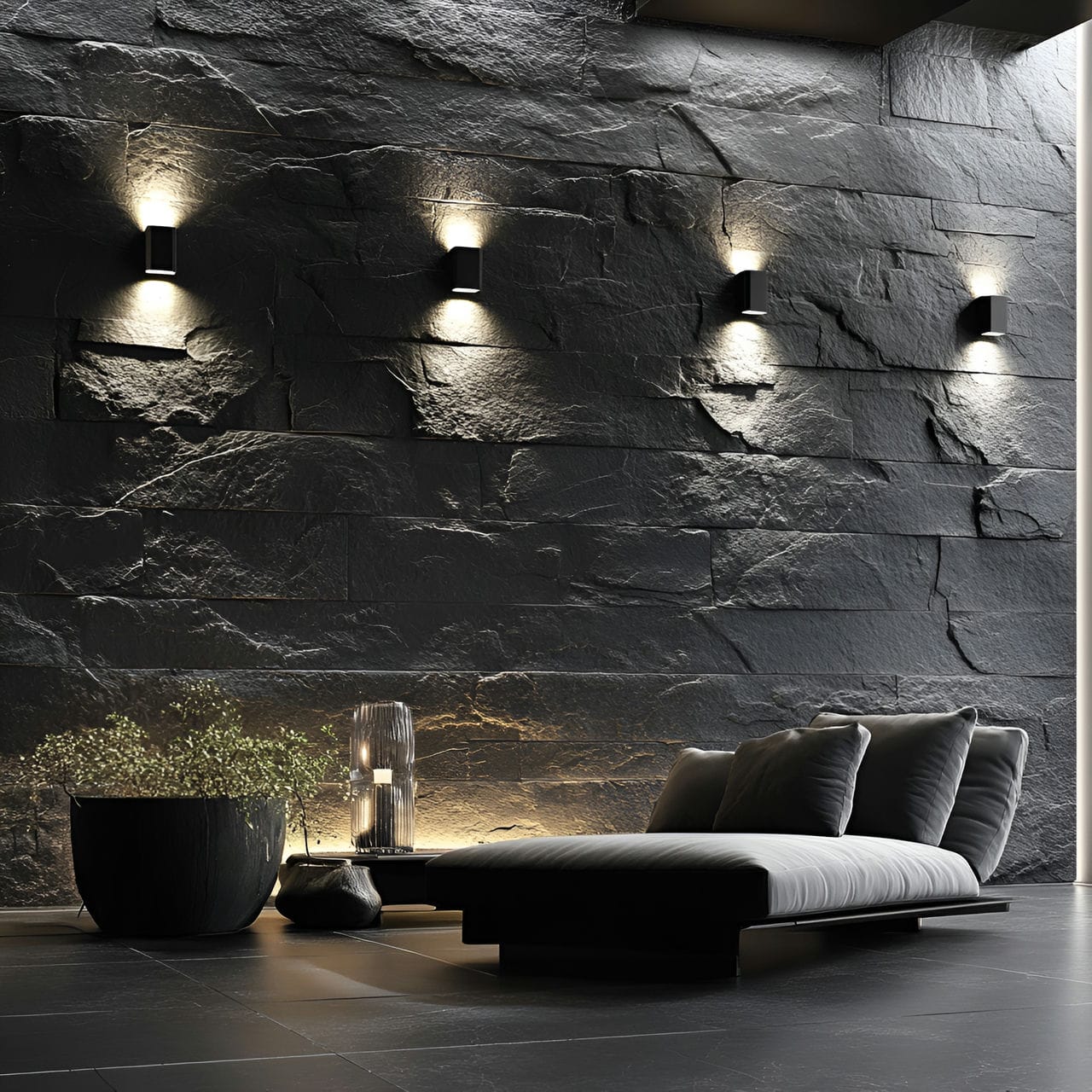

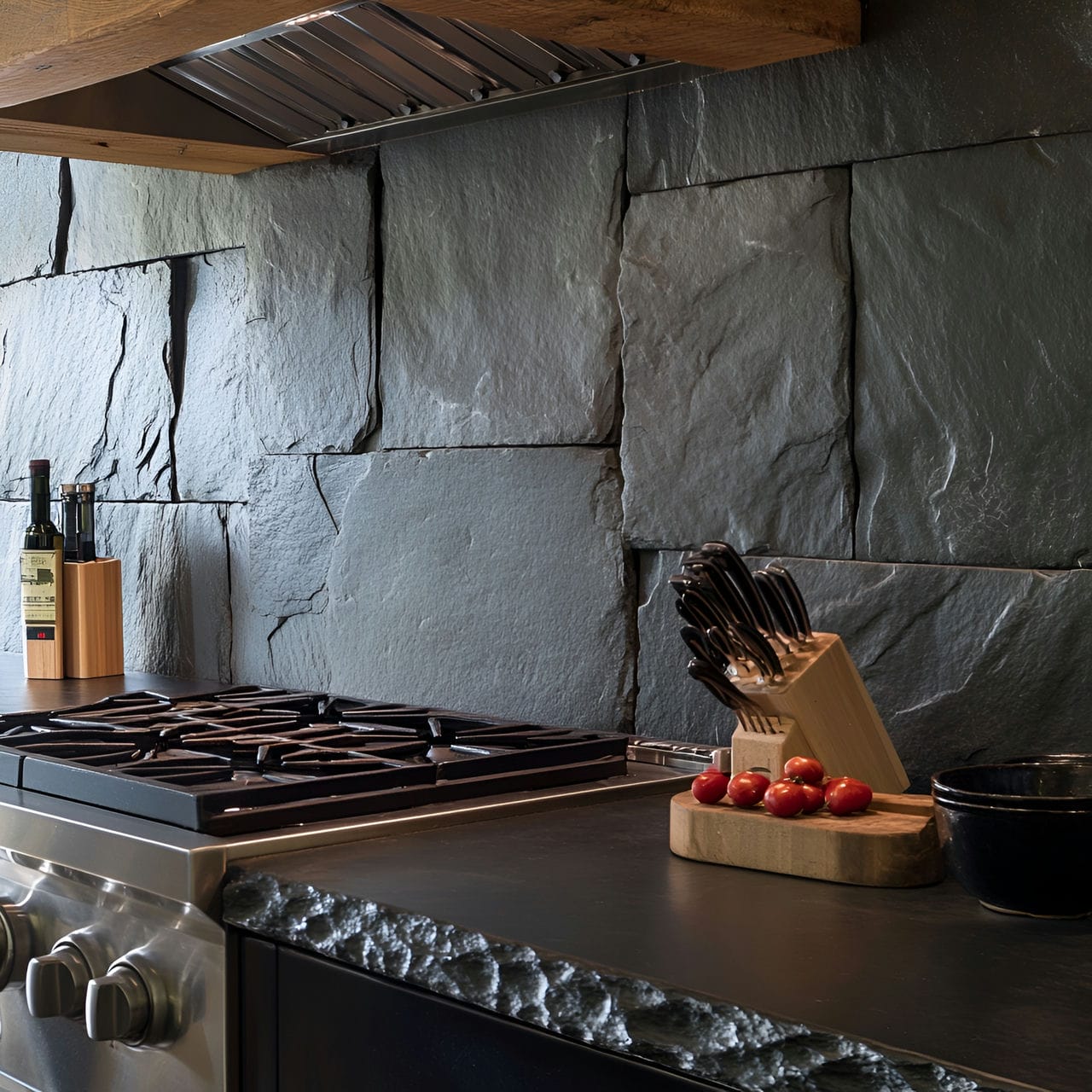

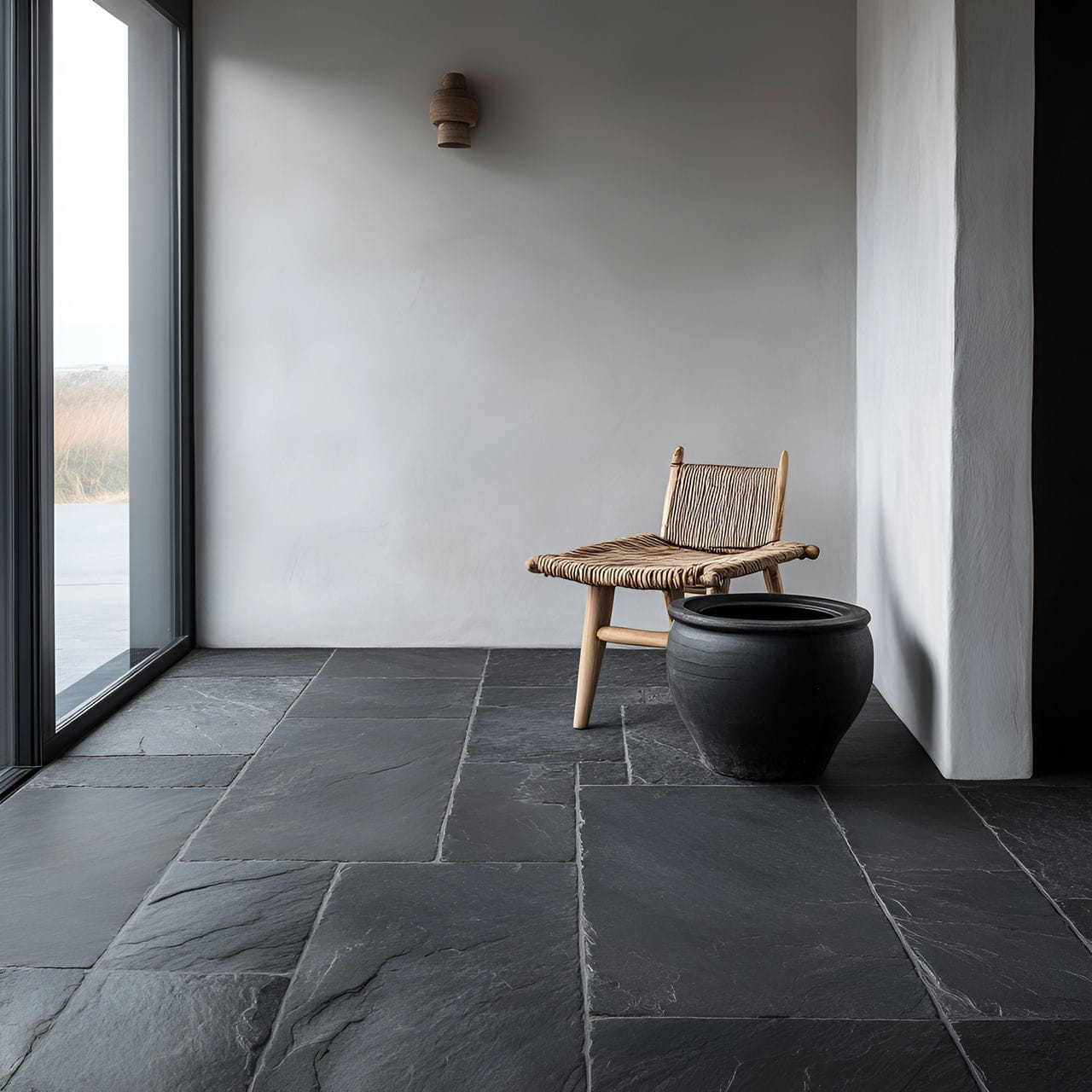

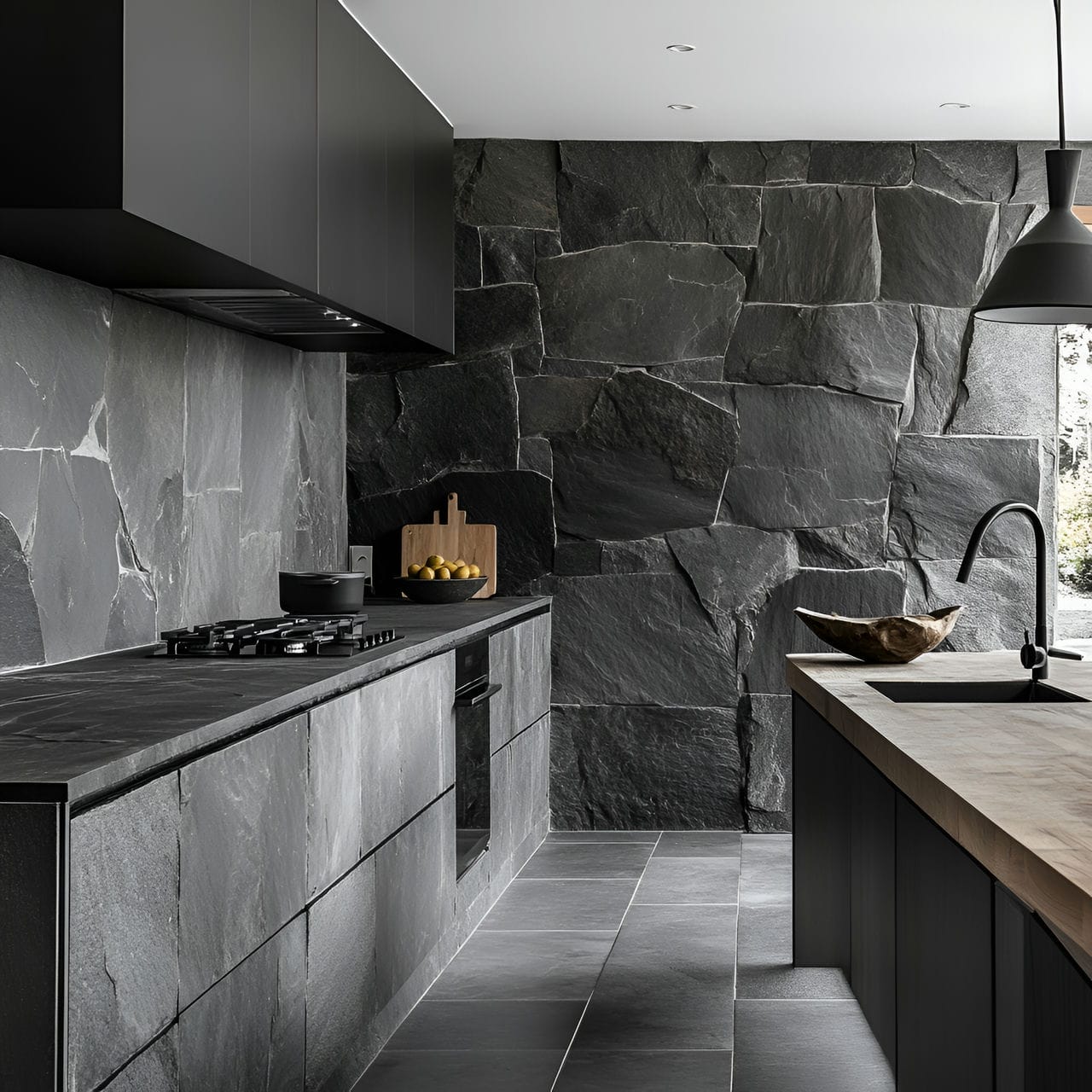

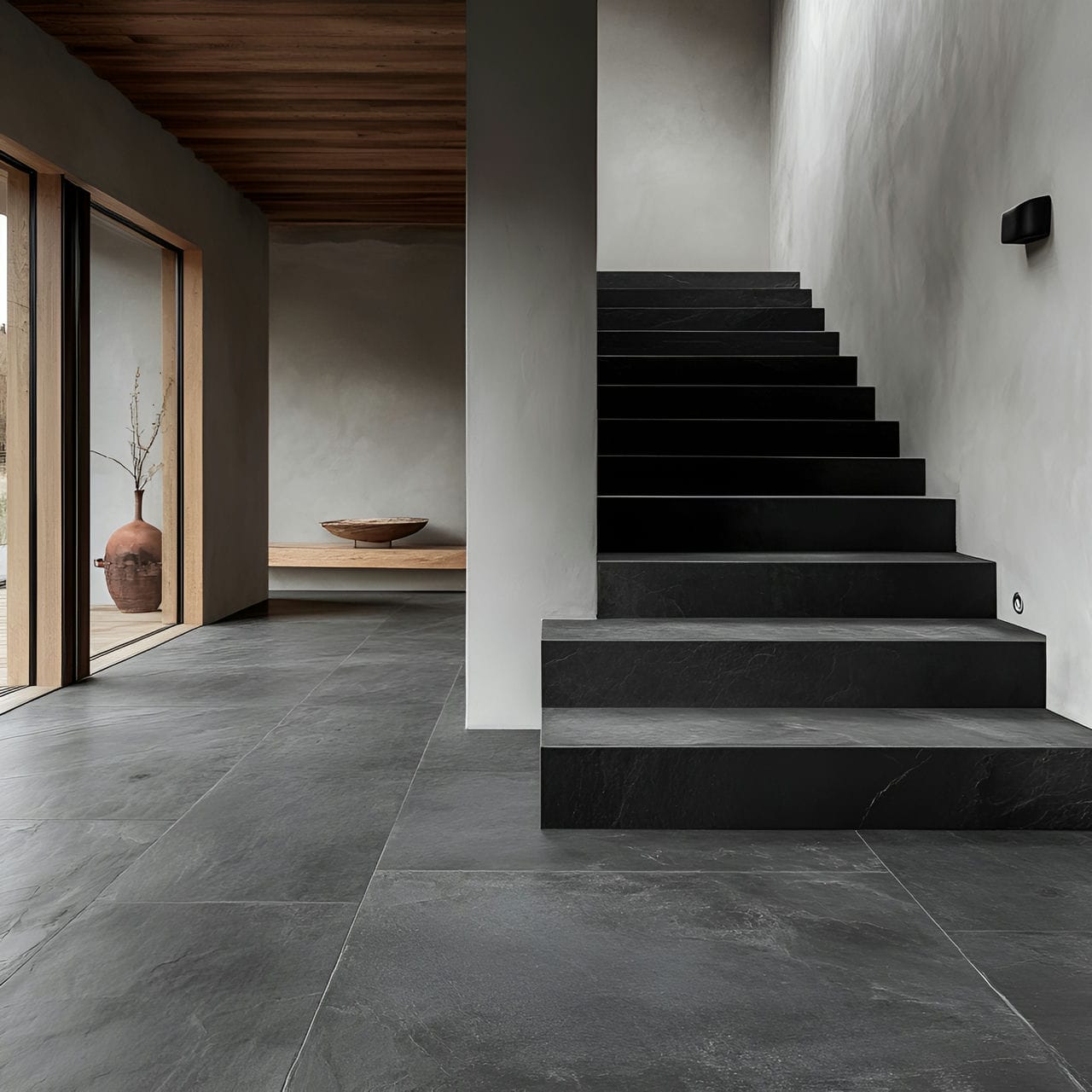

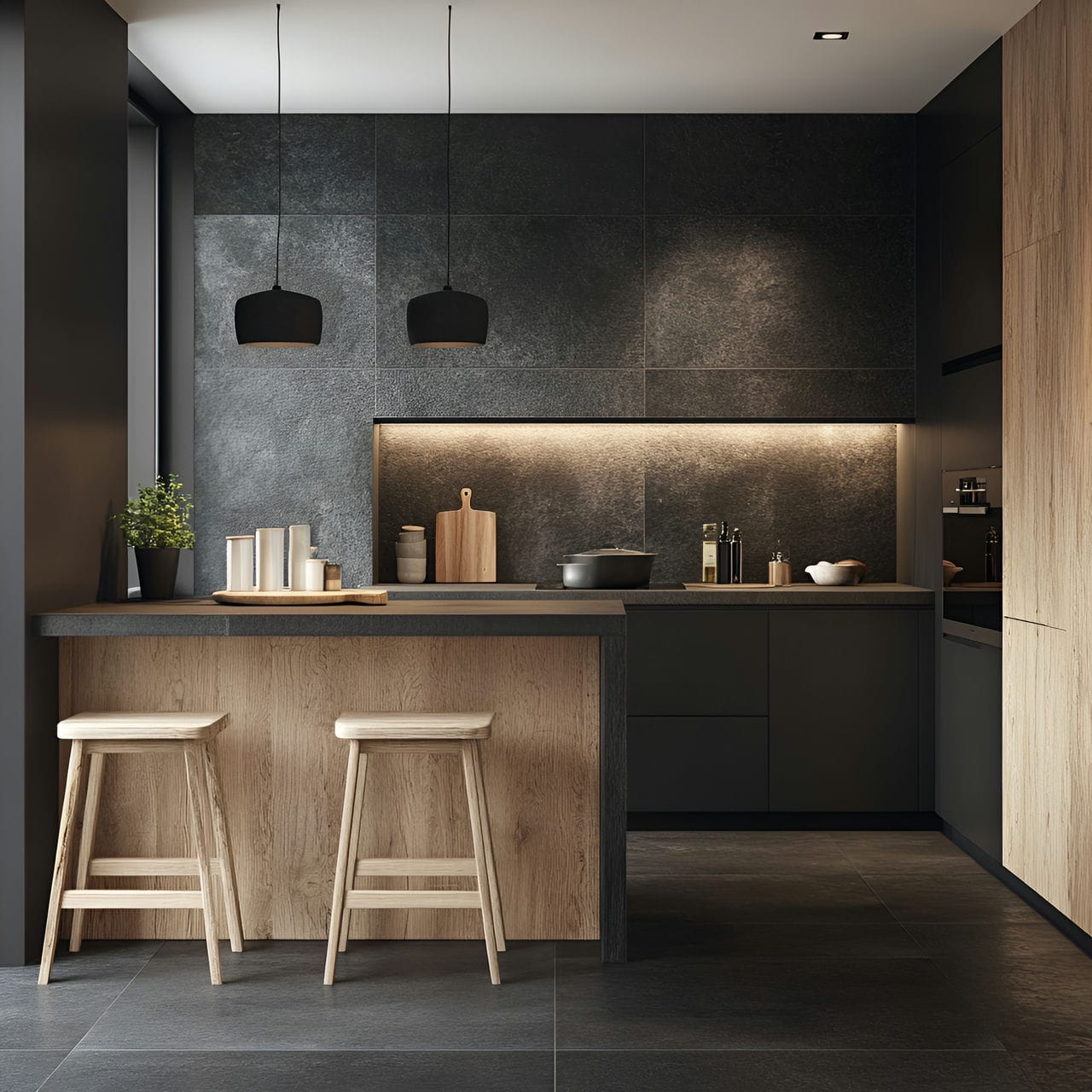

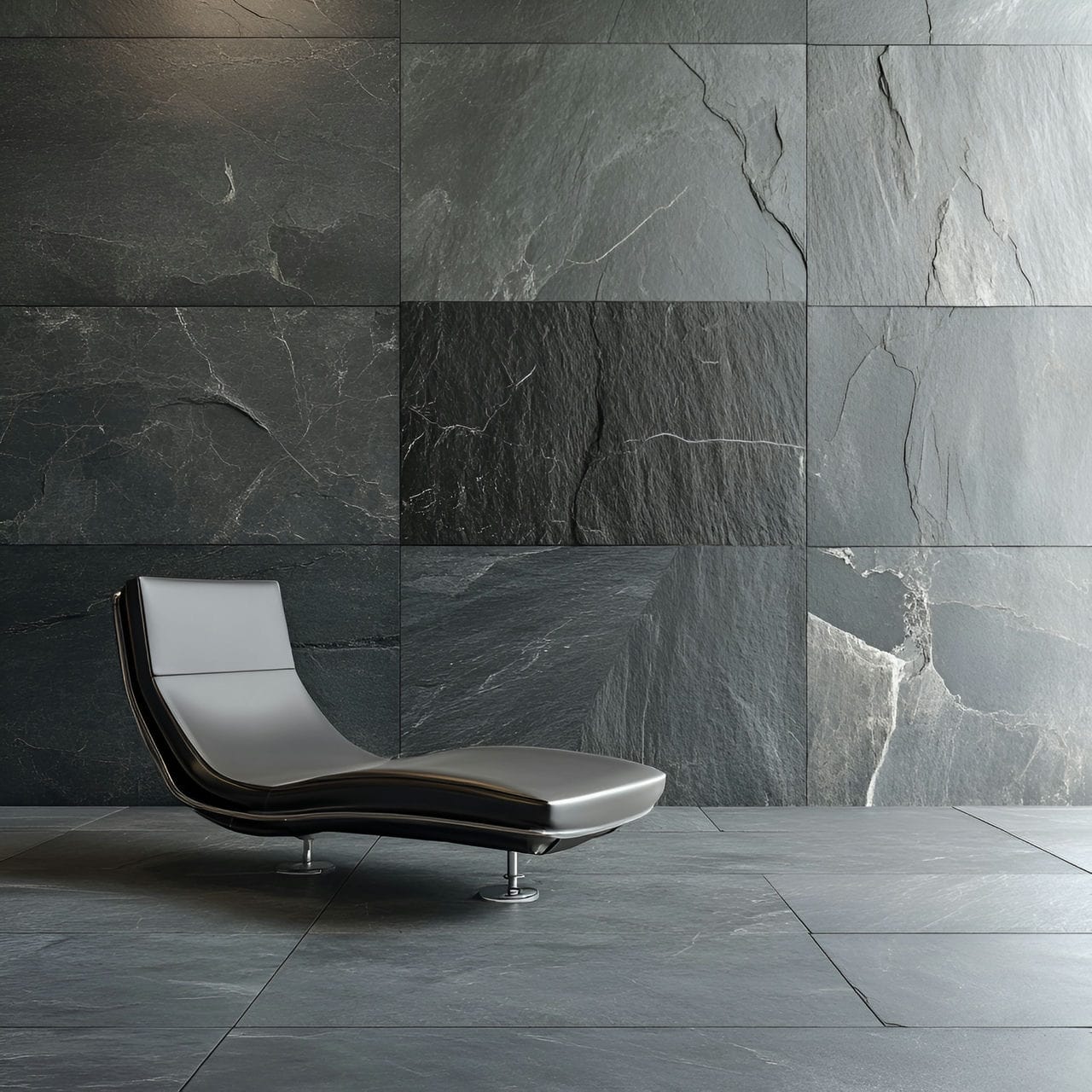

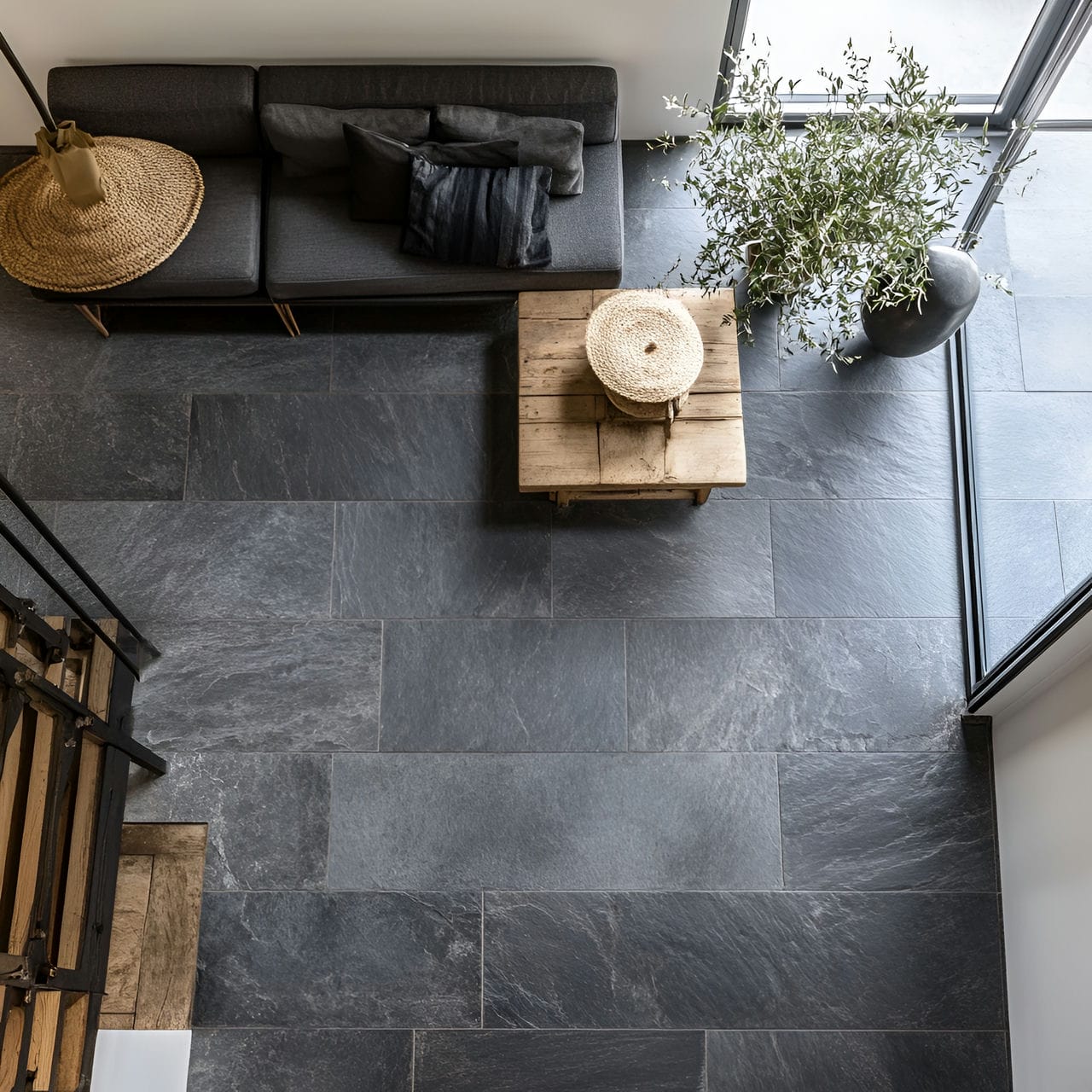

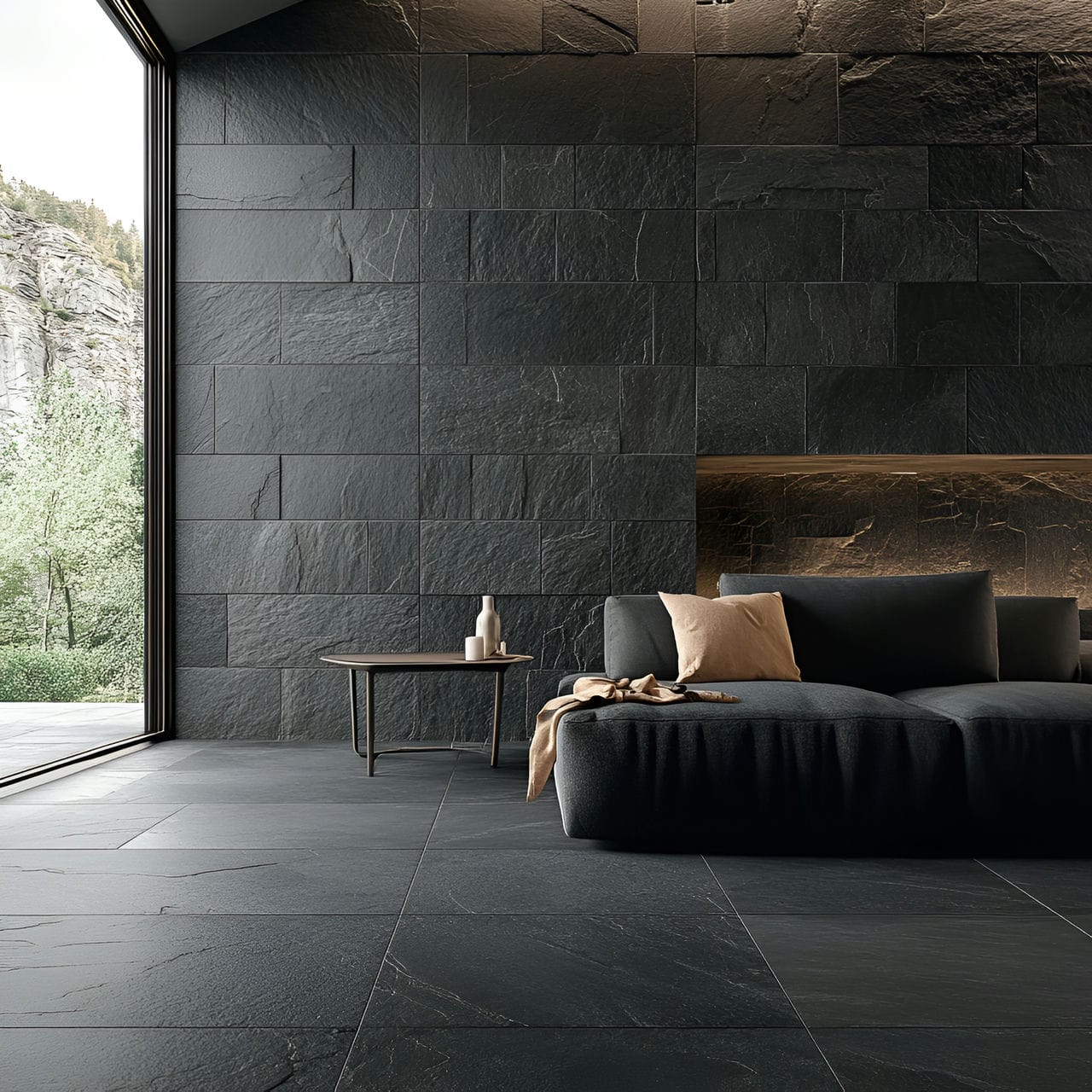

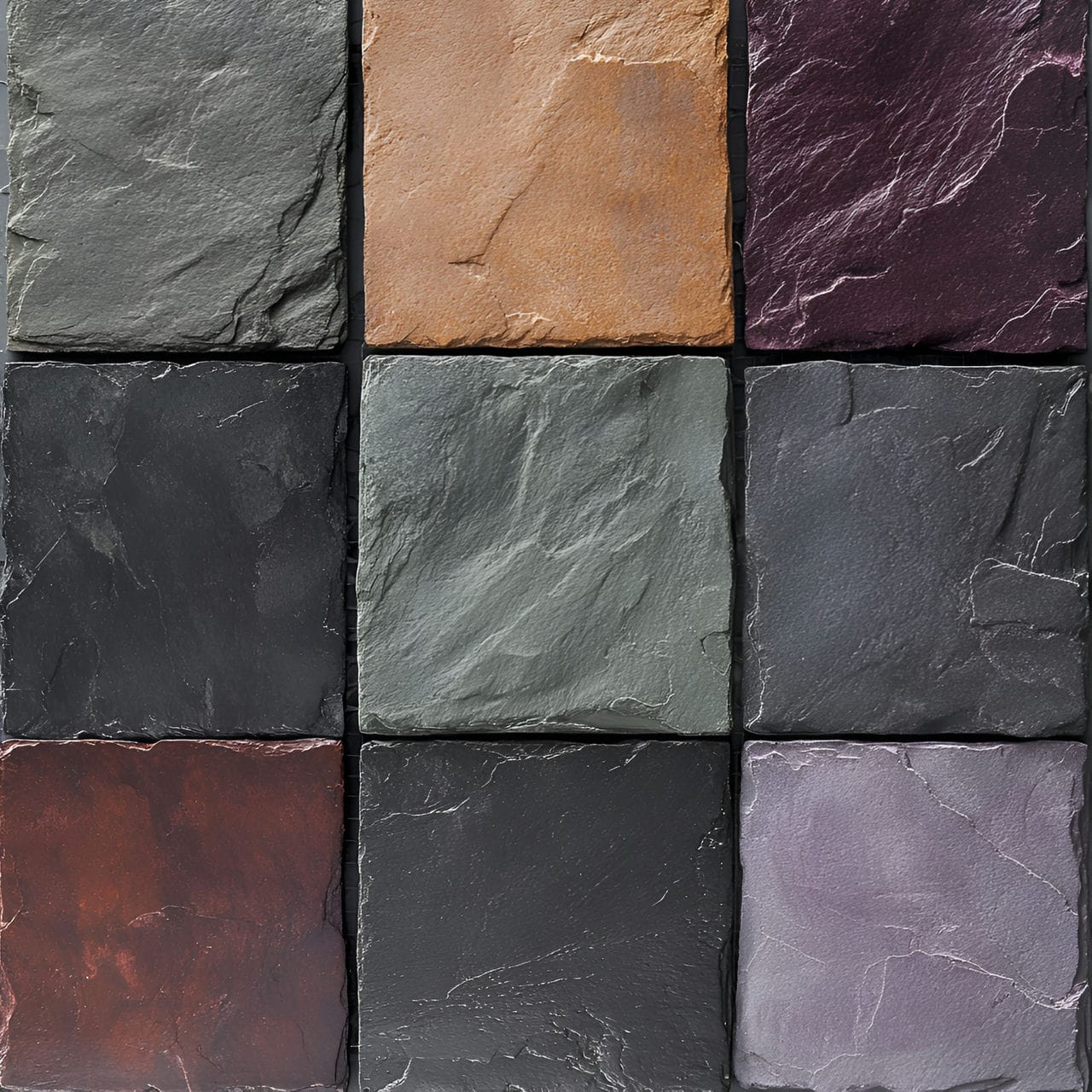

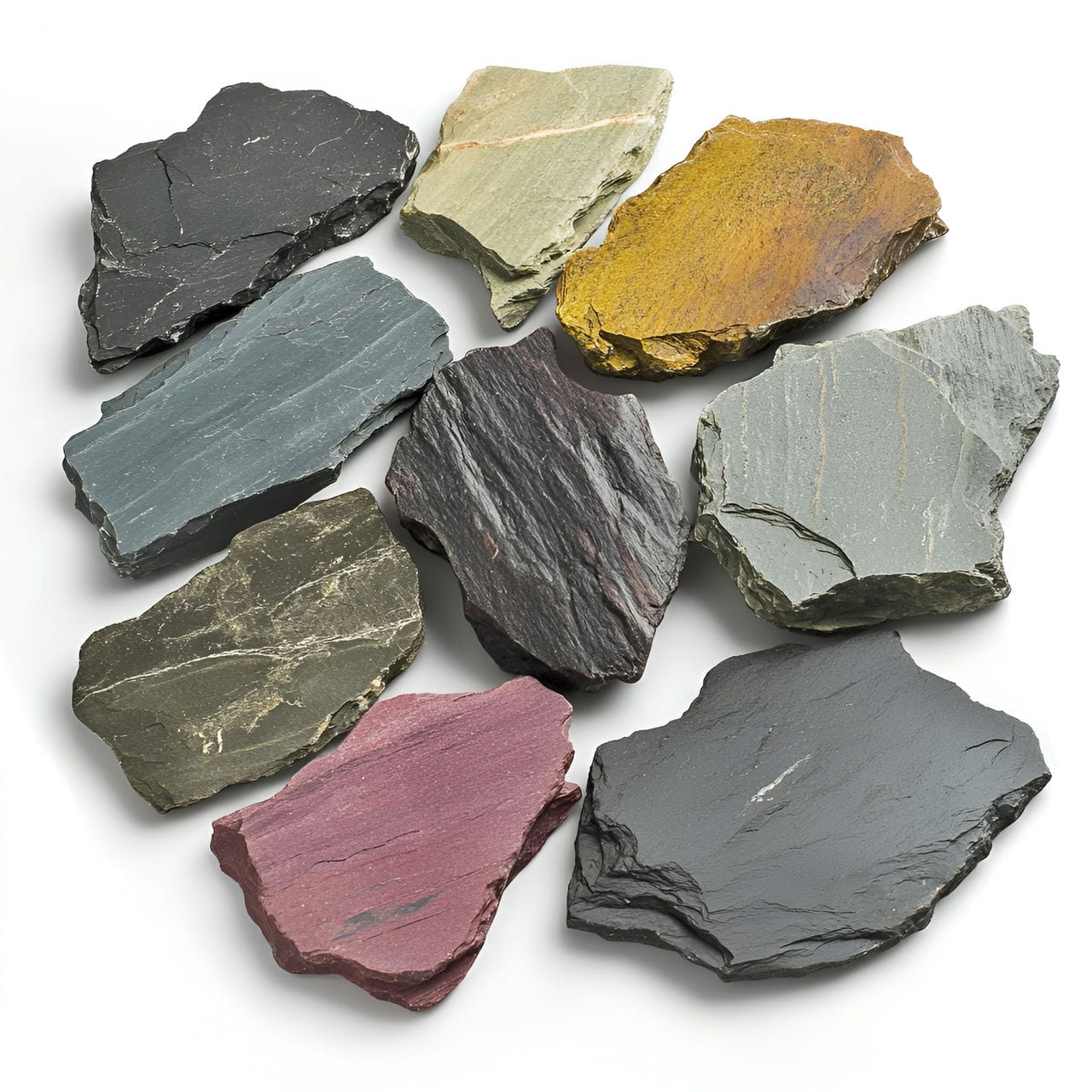

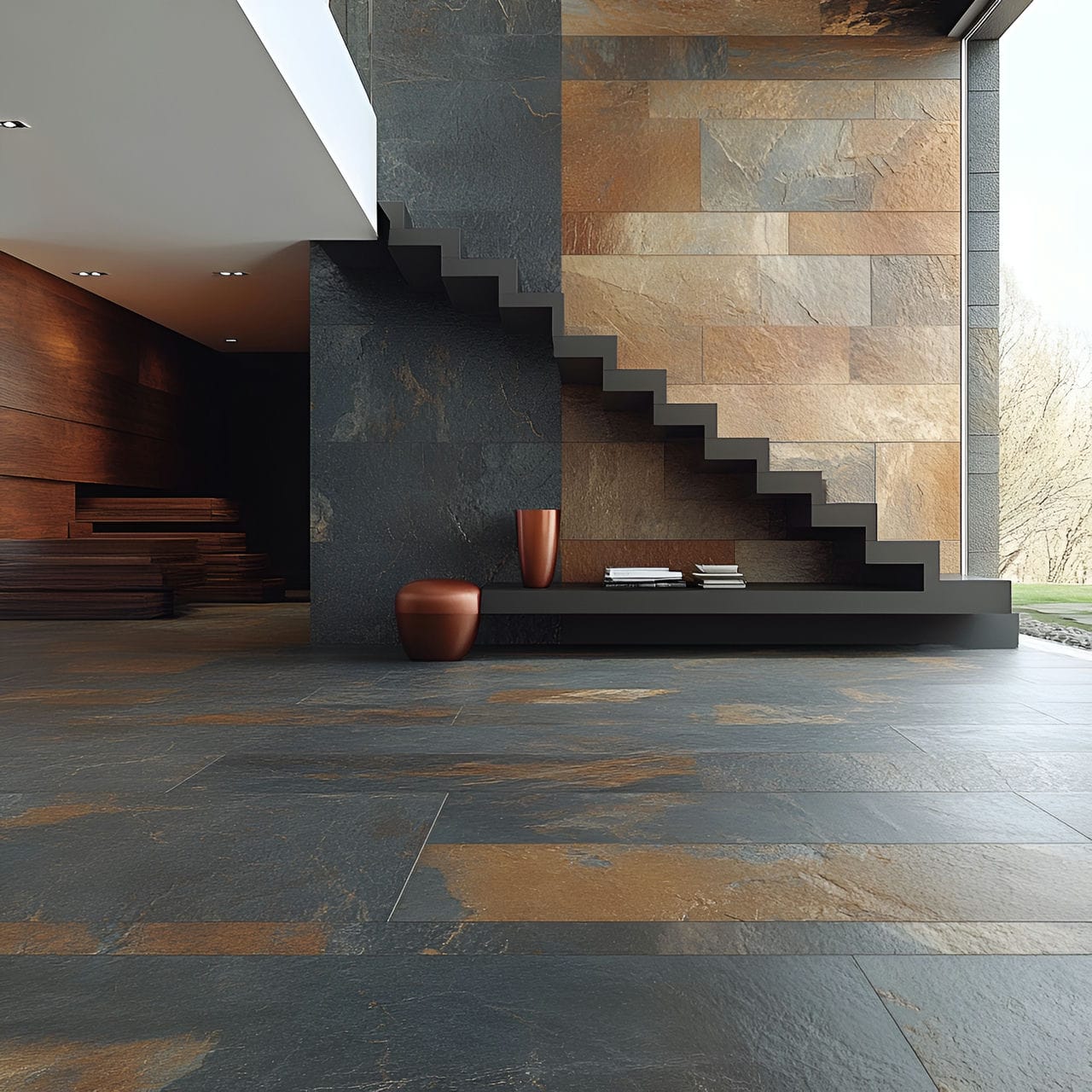

- Slate Floor/Wall Tiles: Slate tiles for floors, walls, kitchen backsplashes, bathrooms, etc., are known for the stylish, easy-care surfacing they provide. Slate tiles come in an appealing range of natural colors, from purple to green to gray, with inherent texture.

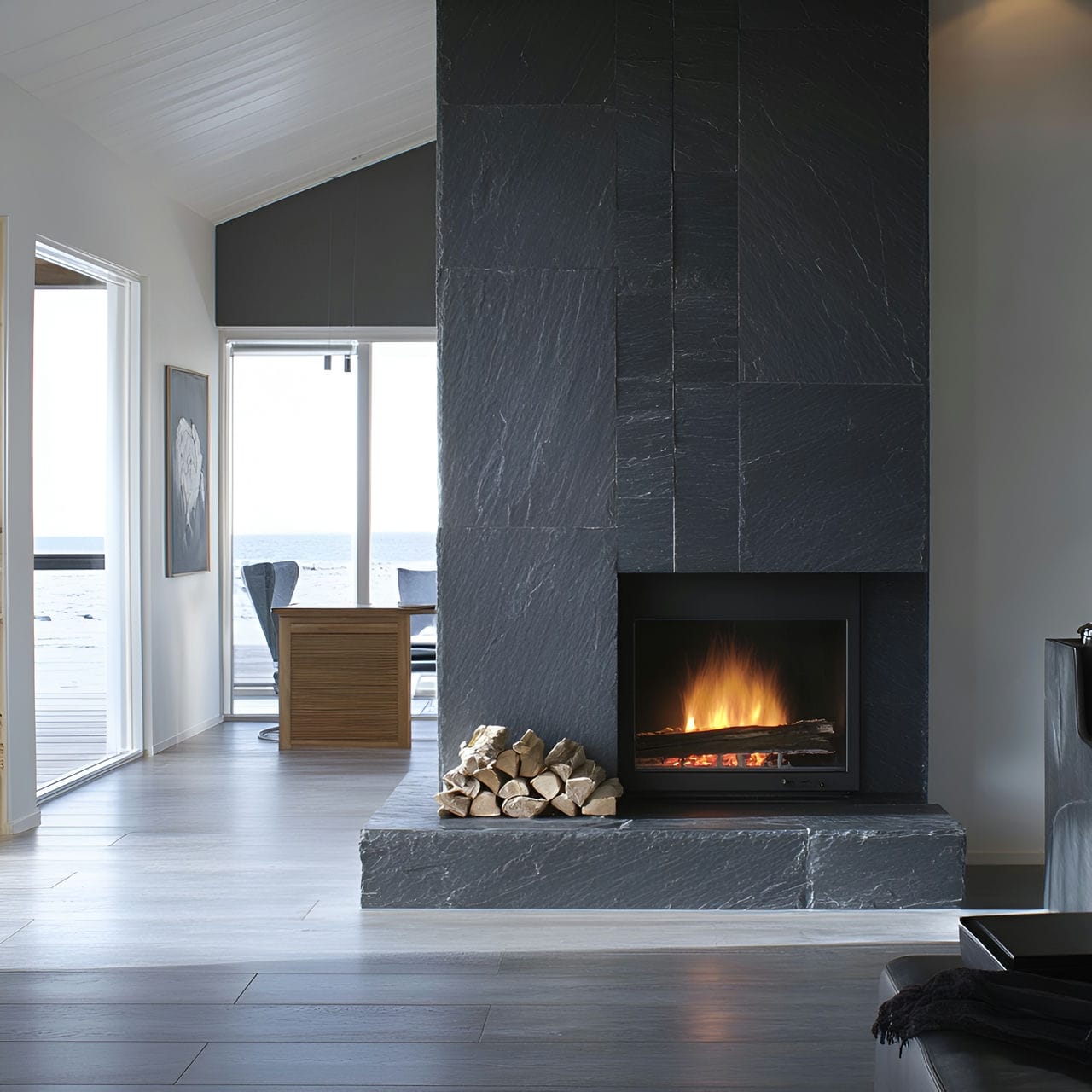

- Slate Fireplace Surrounds: Slate stone shapes up into mantels, hearths, facing, and other elements surrounding home fireplaces. Slate’s heat resistance, bold visuals, and traditional character make it a fitting choice for the house. Slate fireplace surrounds become focal points.
- Slate Home Goods: Slate’s smooth yet rich surface finds expression in home goods like cheese boards, coasters, frames, and signage that carry slate’s upscale, eco-friendly qualities. Slate’s neutral palette works anywhere while adding organic texture.
What materials do architects prefer in modern house buildings?
There are four primary materials that architects prefer in modern house buildings. Firstly, architects frequently incorporate glass into modern-style homes for its transparency, ability to maximize natural light, and seamless integration with the surrounding environment. Glass allows for expansive views, creating a sense of openness and connection to the outdoors. It promotes energy efficiency by reducing the need for artificial lighting during the day. Secondly, steel is favored in modern-style homes due to its strength, versatility, and clean lines. Steel structures provide the opportunity for large, open spaces and expansive windows, contributing to the modern aesthetic. Its durability allows for long-span designs and the incorporation of unique architectural features. Thirdly, concrete is a popular material choice for modern-style homes due to its versatility, durability, and minimalist appearance. It offers the ability to create sleek, monolithic forms and provides excellent thermal mass, aiding energy efficiency. Concrete can be molded into various shapes, allowing architects to experiment with innovative designs. Lastly, architects often incorporate natural stone into modern-style homes for its timeless elegance and connection to nature. Stone materials, such as granite, marble, or limestone, provide a sense of luxury and sophistication. They can be used as cladding, flooring, or accent features, adding texture and visual interest to the design.
Is slate an elegant material to use in luxury buildings?

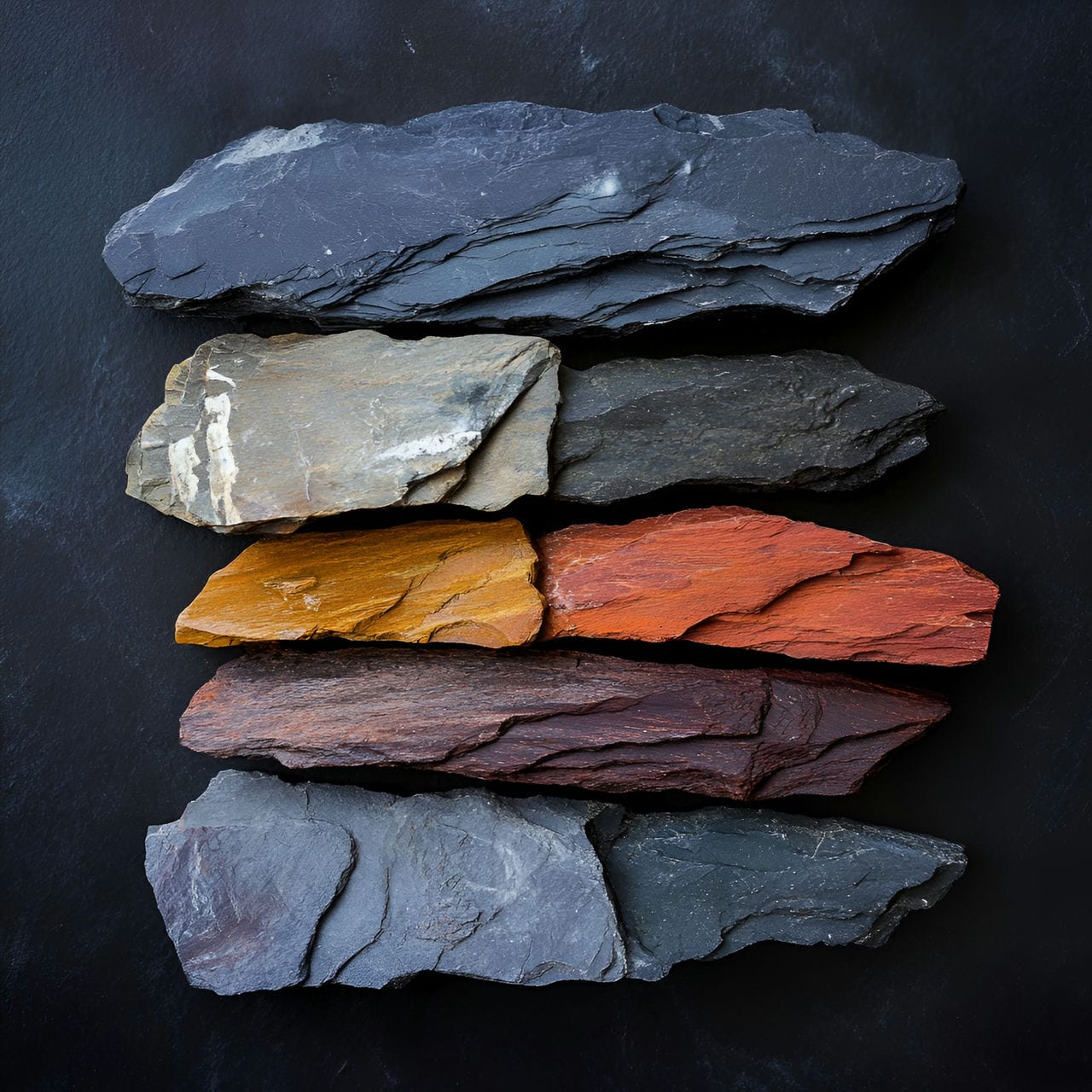

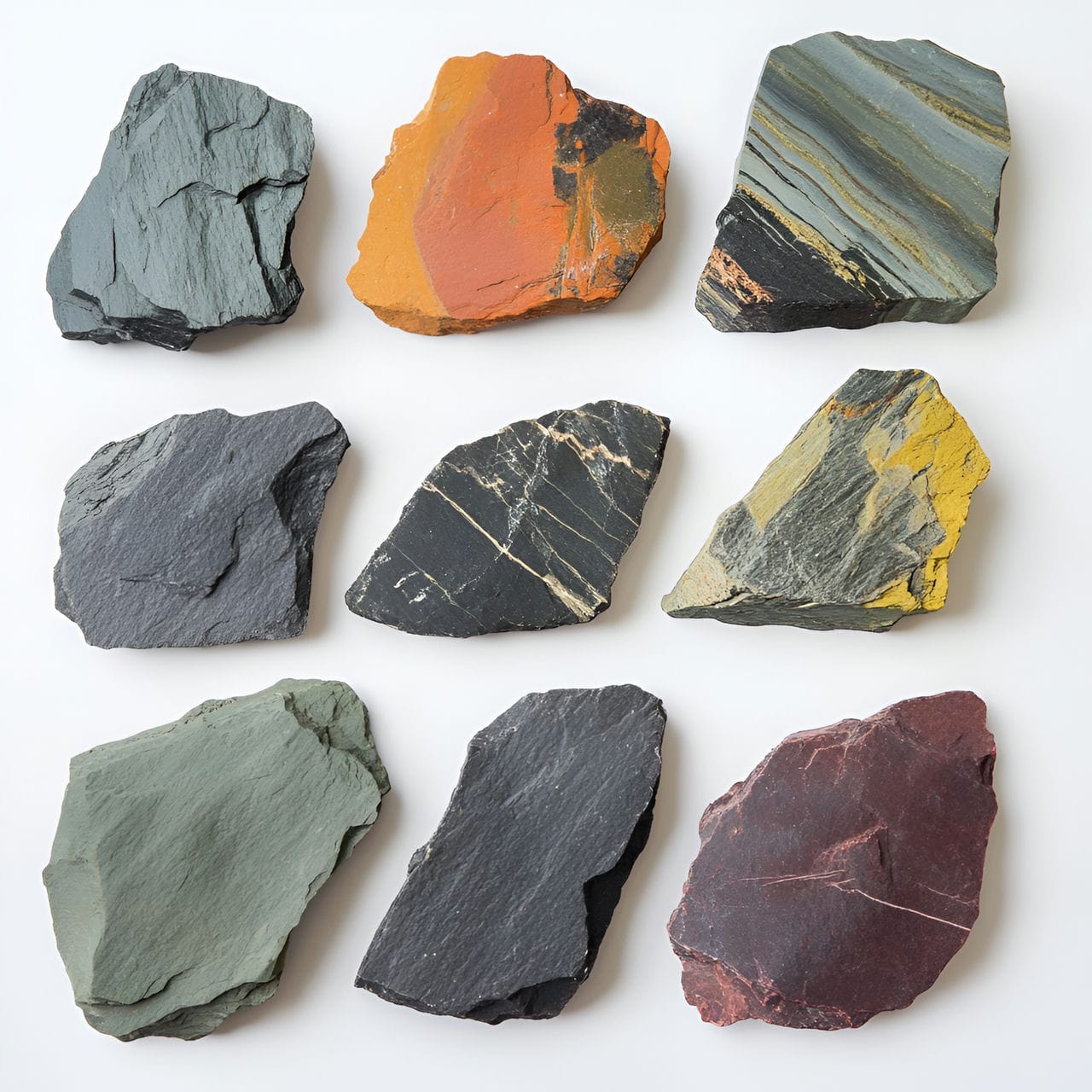

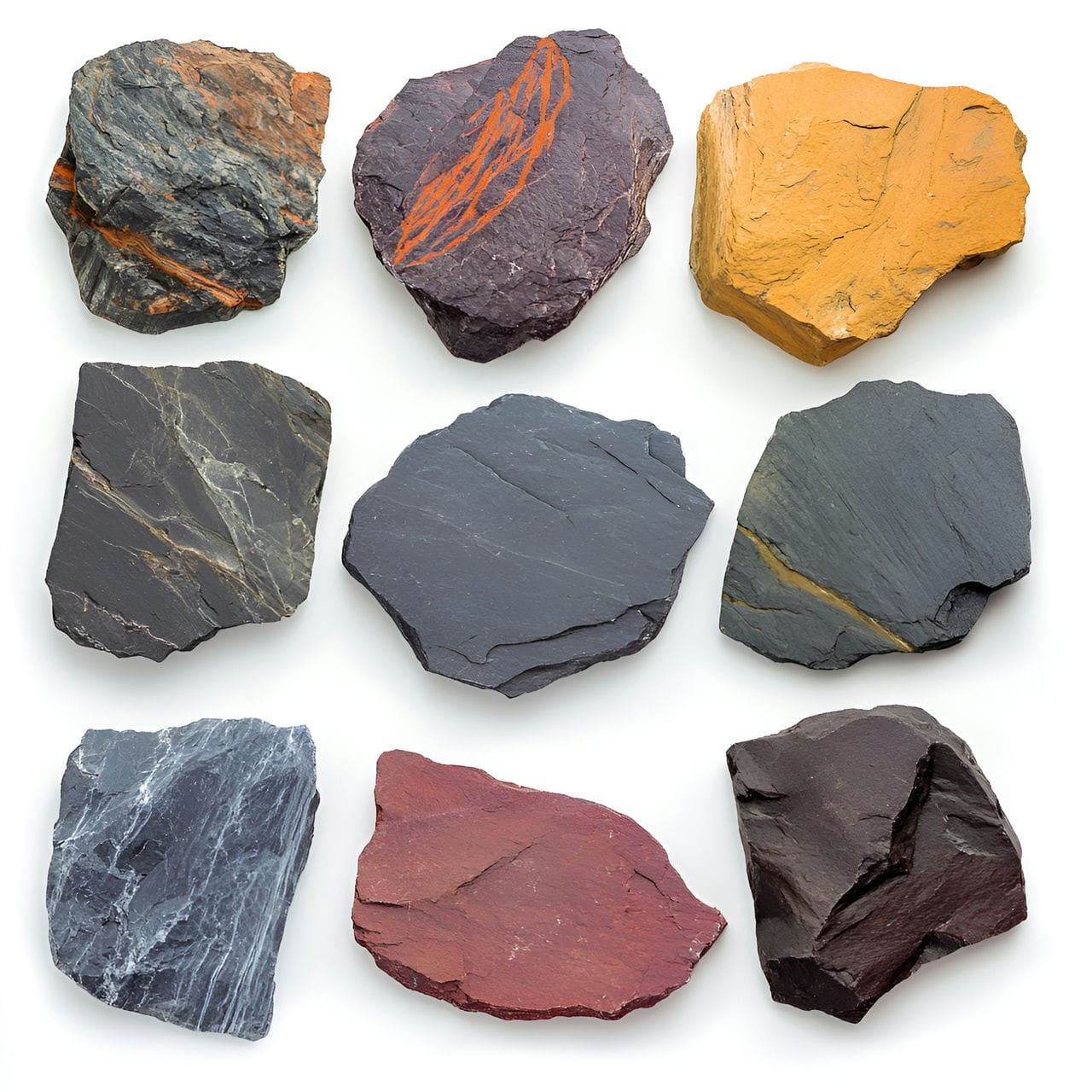

Yes, slate is an elegant material to use in luxury buildings. Firstly, slate comes in a diverse range of colors, from grey to purple, green, blue, and more, allowing great flexibility in design. The textures of slate also add visual interest, from smooth finishes to more rugged, natural cleft surfaces. Secondly, slate is extremely durable, fireproof, and weather-resistant. Slate is made by natural geological processes, making it very compressed and strong, yet still possible to split into roofing tiles. Lastly, the slate has associations with history, tradition, and craftsmanship, giving it an upscale, prestigious quality. Slate roofs bring to mind stately homes and historic buildings across Europe and America. This gives new buildings a sense of class and sophistication when slate features on the exterior or interior. Slate brings elegance, prestige, history, and beauty to luxury buildings in a way few other materials can match.
Is slate considered a “green” material?
Yes, slate is considered a “green” material. Slate is a metamorphic rock that forms from the compression of clay and shale over long periods, making it a renewable resource. Slate extraction does not involve energy-intensive manufacturing processes contributing significantly to carbon emissions. Slate’s green credentials are its durability and longevity. Slate roofs are known for their exceptional lifespan, often lasting more than a century with proper maintenance. The durable nature of the slate also makes it resistant to weathering, erosion, and mold or algae growth, reducing the need for chemical treatments and maintenance interventions.
