Beinecke Rare Book & Manuscript Library / SOM | Classics On Architecture Lab

Architects: Skidmore, Owings & Merrill
Area: 125,262 ft²
Year: 1963
Photographs: Ezra Stoller/Esto, SOM, Gunnar Klack, Henry M. Trotter, Michael Kastelic, Ragesoss, Nick Allen, Ajay Suresh
City: New Haven
Country: United States

The Beinecke Rare Book and Manuscript Library, designed by Skidmore, Owings & Merrill (SOM) and completed in 1963, stands as a Modernist icon on Yale University’s campus, housing one of the world’s premier rare book collections. Funded by alumni Frederick and Edwin Beinecke, the library balances aesthetic and functional needs with its translucent 1¼-inch-thick marble façade set in a Vermont granite grid, diffusing light to protect delicate manuscripts. At its heart, a six-story glass tower showcases 180,000 rare books, visible but accessible only to staff. Beneath the plaza, two subterranean floors house 320,000 volumes, manuscripts, classrooms, and reading spaces, naturally lit through a sunken courtyard. Designed by Isamu Noguchi, the courtyard features a plantless marble garden with three abstract sculptures symbolizing the earth, the sun, and chance. Structural innovation, including hidden steel trusses and four massive concrete piers, enables the ground-level lobby’s glazed walls, to offer views of the glass tower. Initially criticized for clashing with Yale’s Collegiate Gothic surroundings, the Beinecke Library has since become a celebrated Modernist masterpiece, blending bold design with precision and purpose.

Encased within a protective shell of stone, the Beinecke Rare Book and Manuscript Library houses one of the world’s most significant collections of rare manuscripts. Opened in 1963, the library is celebrated for its translucent marble façade and the iconic glass book tower within—a striking design shaped by the specific requirements of preserving literary artifacts. Rooted in the Modernist tradition, the library’s design contrasts sharply with the revivalist architectural styles seen across the rest of Yale’s campus. Although the bold design choices initially sparked controversy and criticism, they have come to be widely admired with the passage of time.

Beinecke Rare Book & Manuscript Library / SOM | Classics on Architecture Lab

Yale’s collection of rare manuscripts originated in 1701, when ten ministers gathered to establish a college in the Connecticut Colony. The books they donated marked the beginning of a series of contributions over the following three centuries, including the cryptic Voynich Manuscript and one of the twenty-one original Gutenberg Bibles known to exist, gifted to the university in 1926.[1] Initially, the rare book collection was stored on special shelving in Dwight Hall, which functioned as a library until the late 19th century. In the 1930s, the collection was relocated to the Rare Book Room in the Sterling Library. A donation from Yale alumni Frederick and Edwin Beinecke in the 1960s enabled the university to construct a dedicated library building to house its expanding collection.[2,3]

Paul Rudolph, who was Dean of the Yale School of Architecture at the time, organized a competition among four firms to determine the designer of the Beinecke Library. One of the architects invited to participate was Gordon Bunshaft of Skidmore, Owings & Merrill (SOM), who declined. Bunshaft’s reasoning, which he shared with Yale’s provost, ultimately convinced the university to award him the commission:

“Say you’re lucky and you win the competition. You then start to talk and work with the people who are going to use the building, and you know the design doesn’t work because of what you’ve learned in getting acquainted with the people. So you start making alterations, and the ultimate thing is a compromise. I believe one of the most important things in doing a building is writing a program, and that entails almost living with the people who are going to use the building, finding out how they hope to work in it, not listening to their solutions but listening to their needs.”[4]

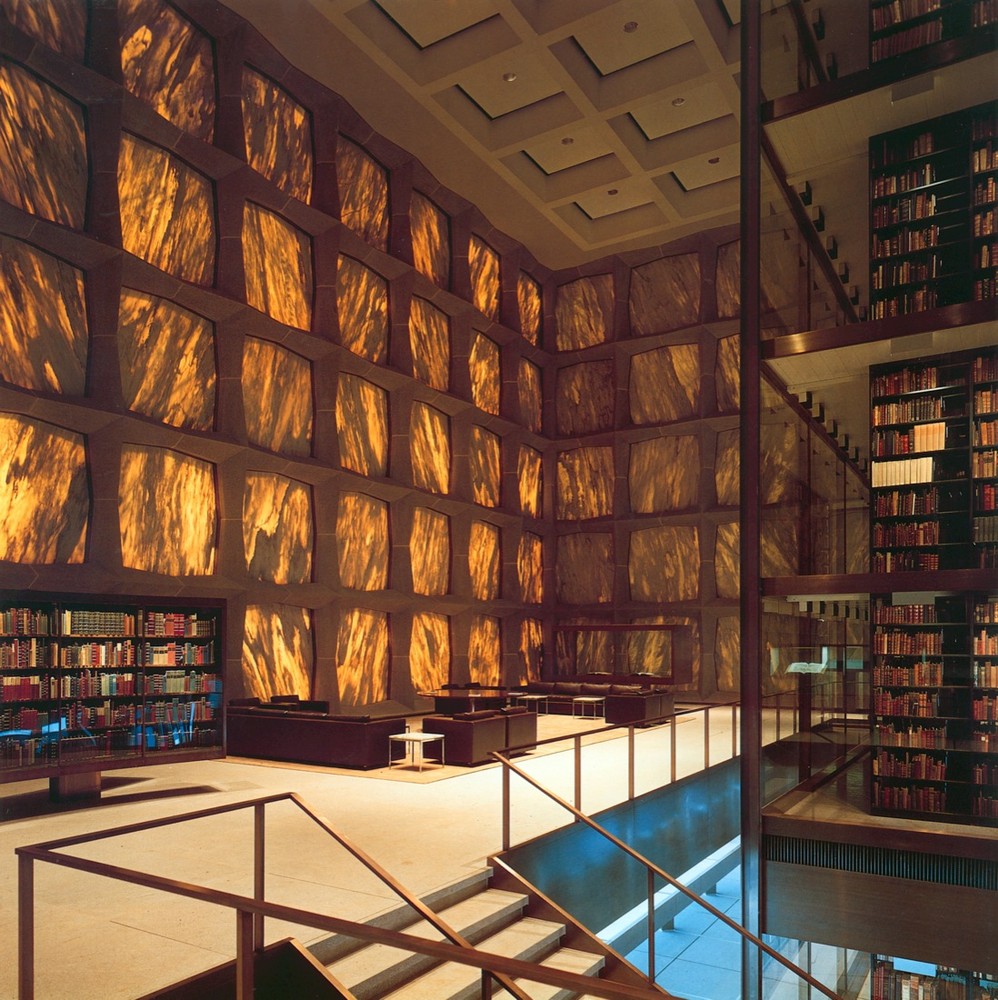

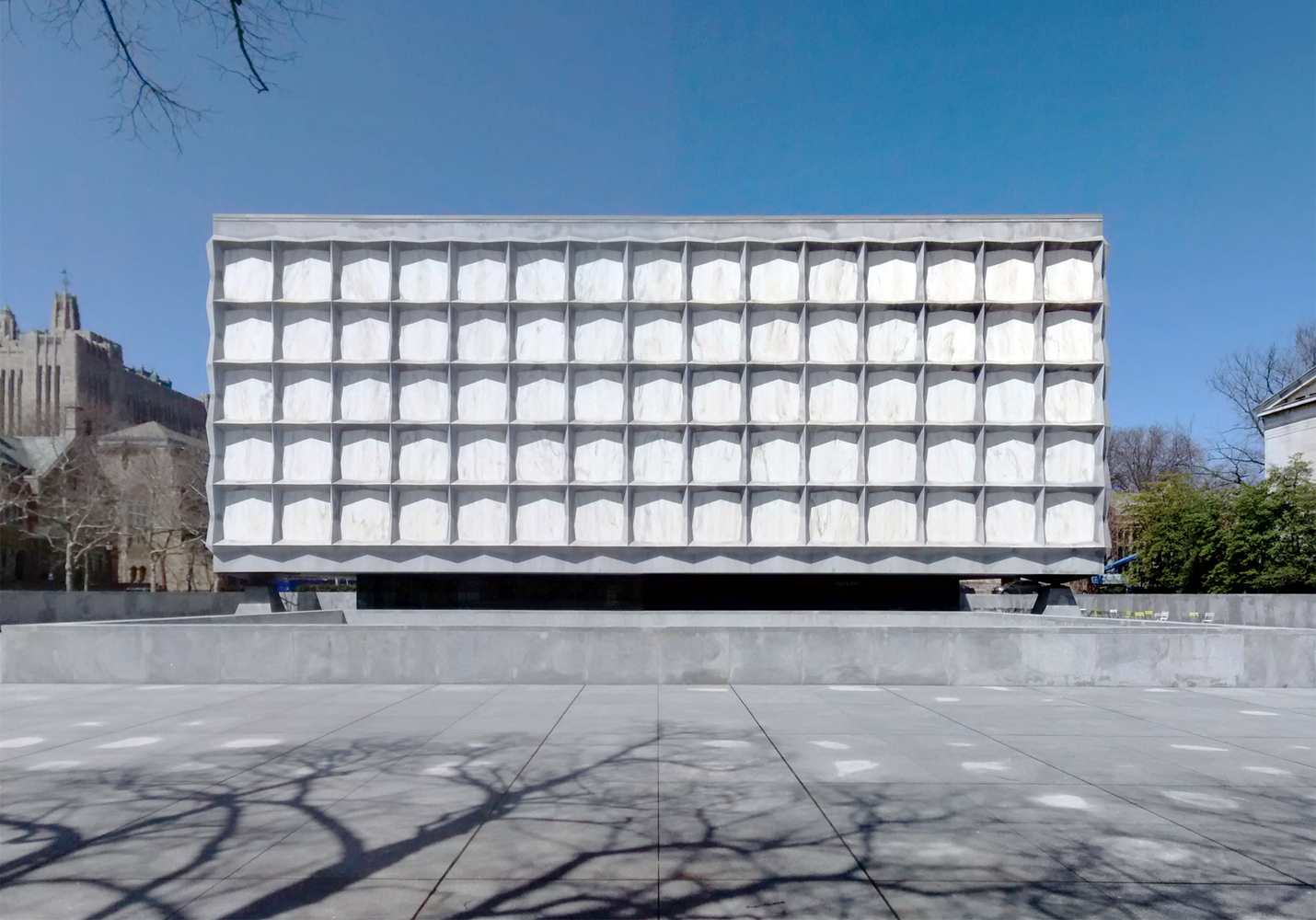

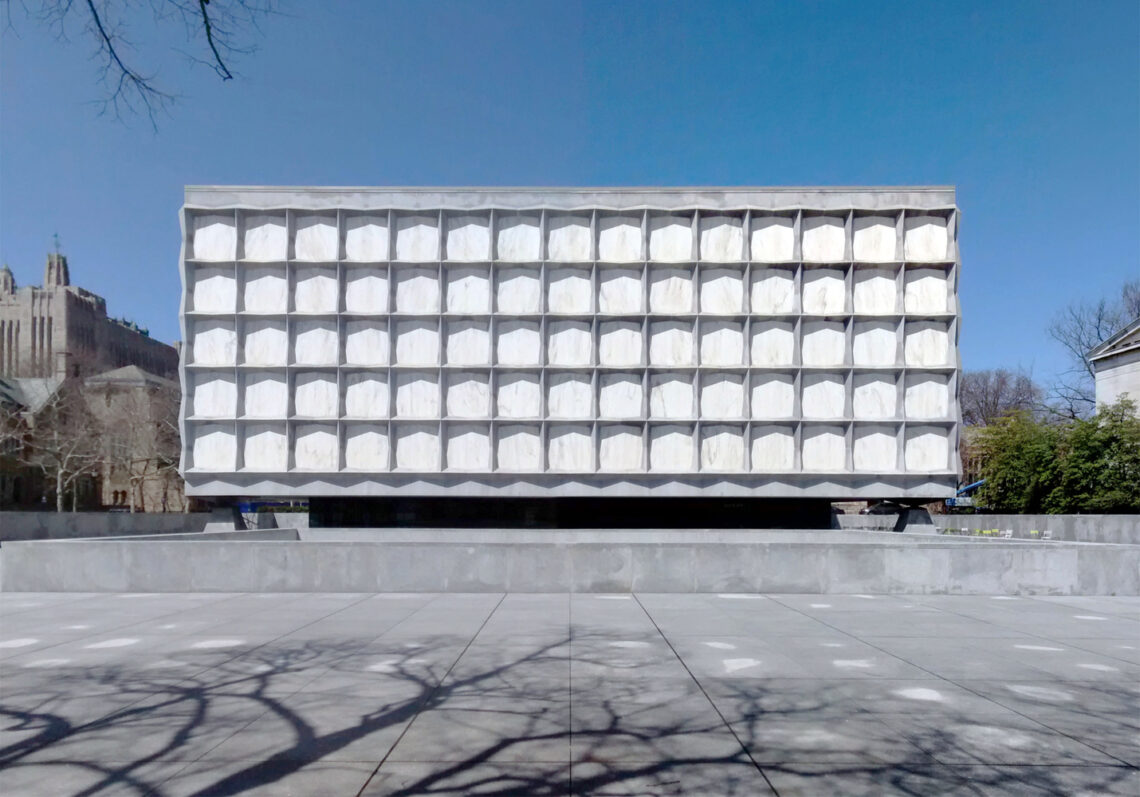

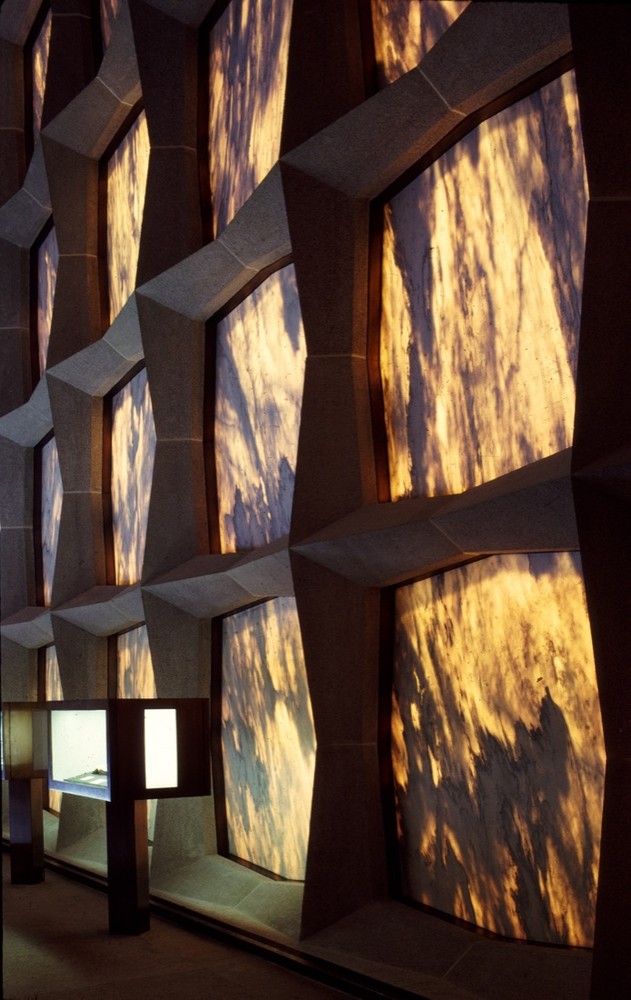

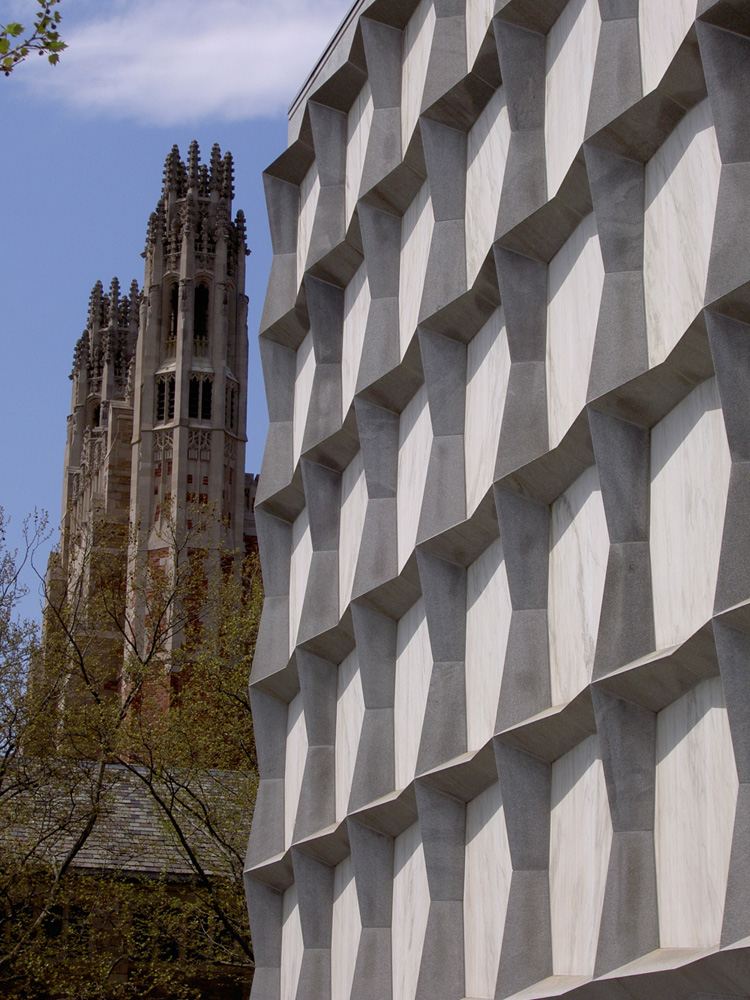

A key concern in the library’s design was the control of light. While sufficient ambient lighting was necessary for the building to function as a space for study and reading, direct sunlight posed a risk to the preservation of the delicate texts. Gordon Bunshaft’s solution was to create a façade using marble panels, each just 1¼ inches (approximately 3 cm) thick, which allowed light to diffuse gently into the interior without harming the collection.[5] Externally, the gray-veined white marble appears cold and impenetrable, but inside, sunlight causes the stone to glow and emit an unexpected warmth.[6]

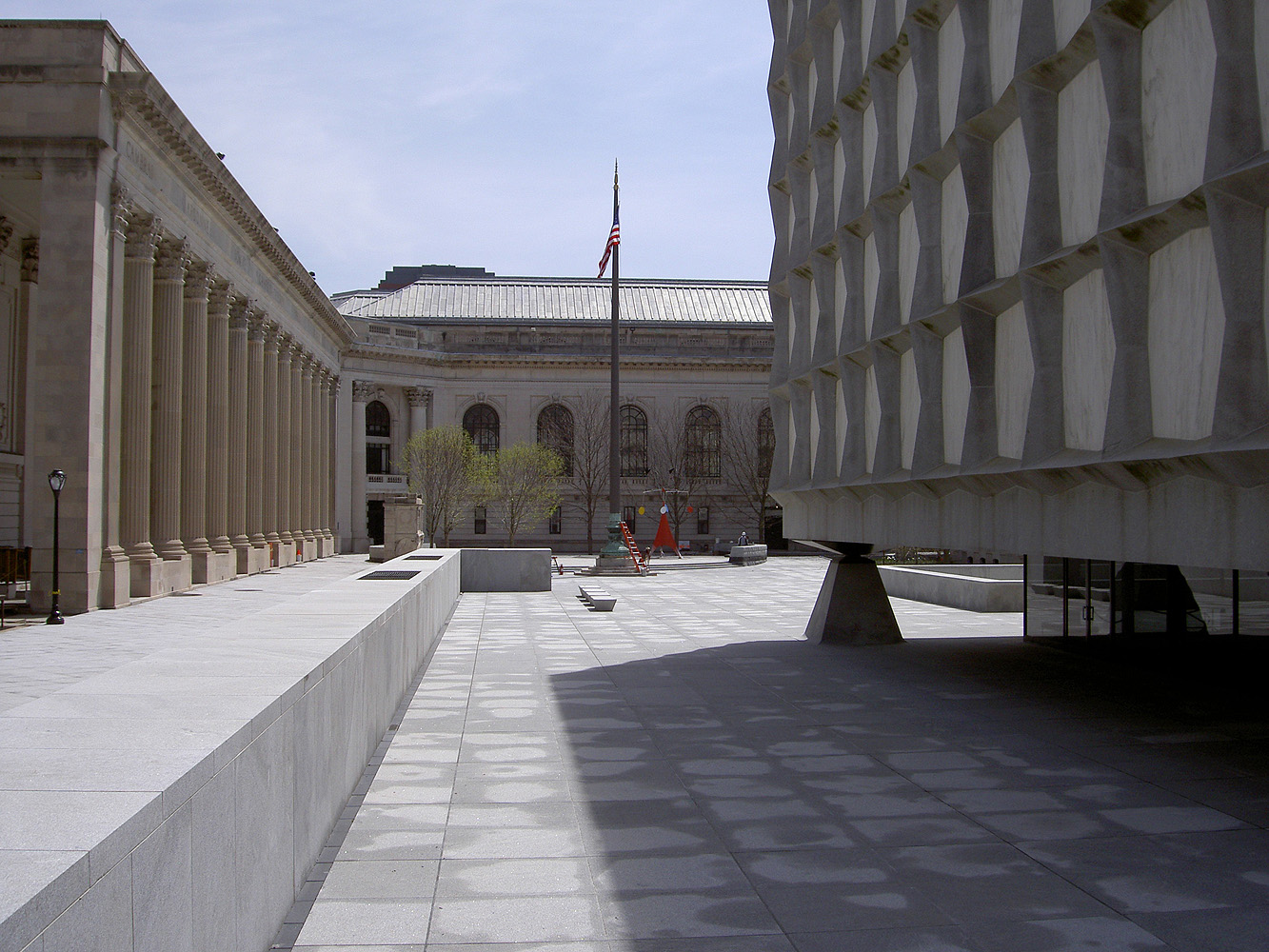

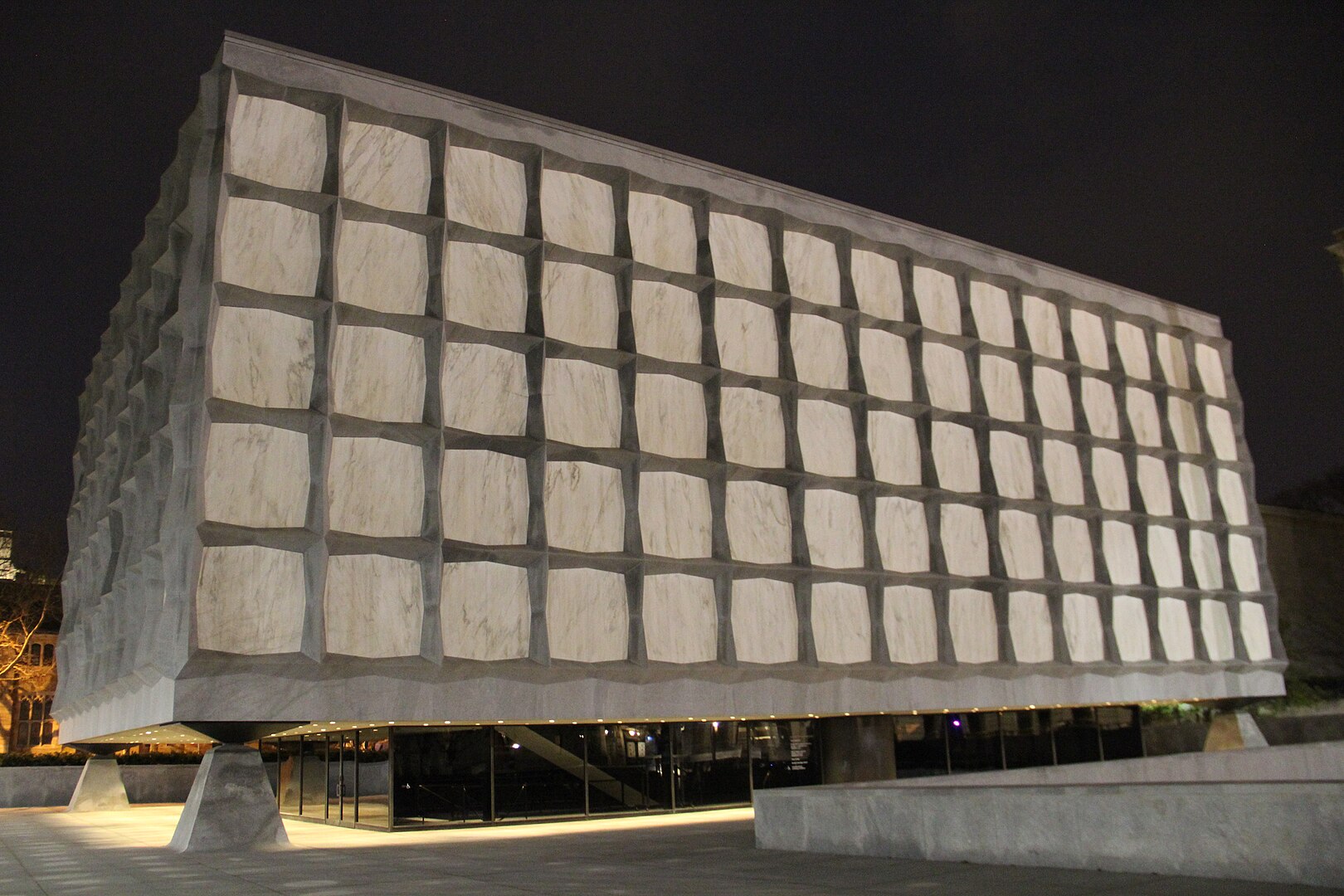

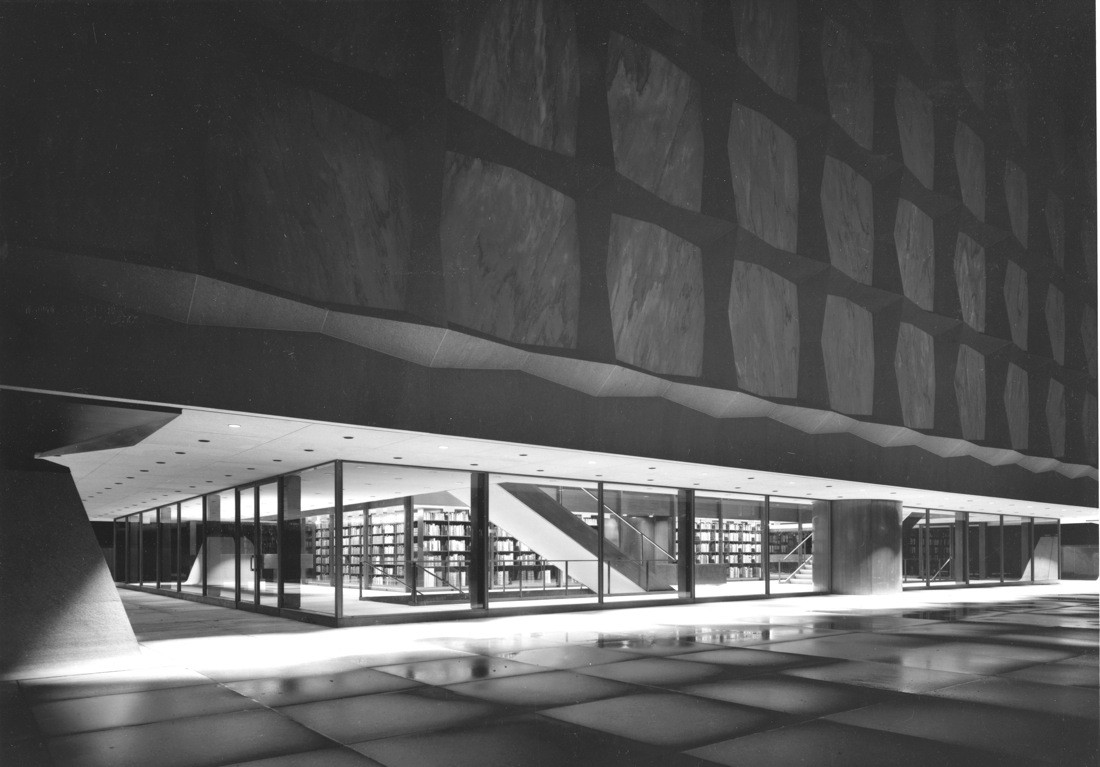

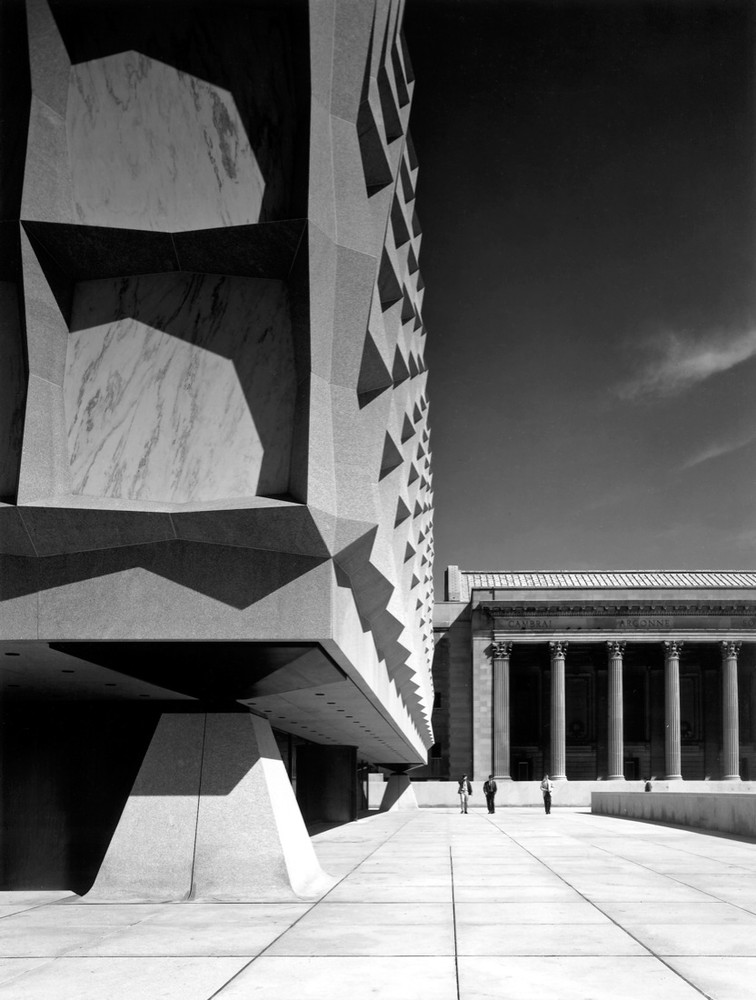

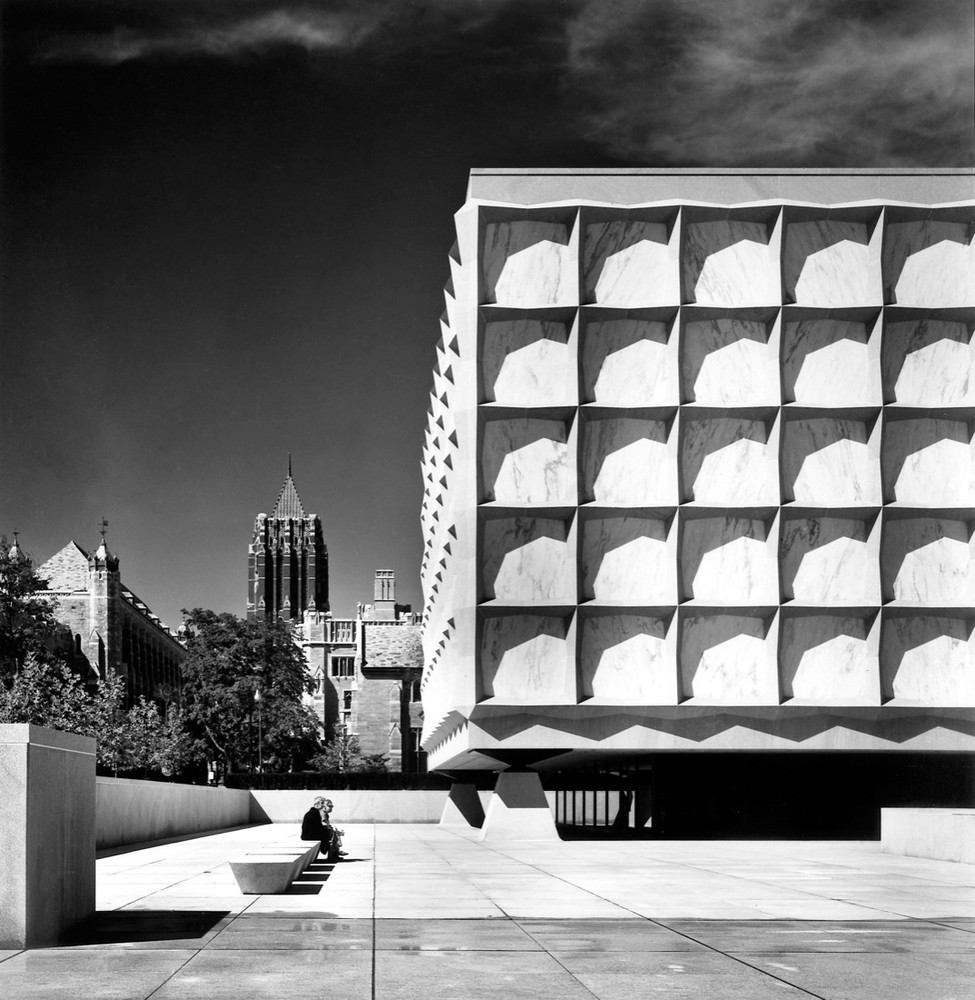

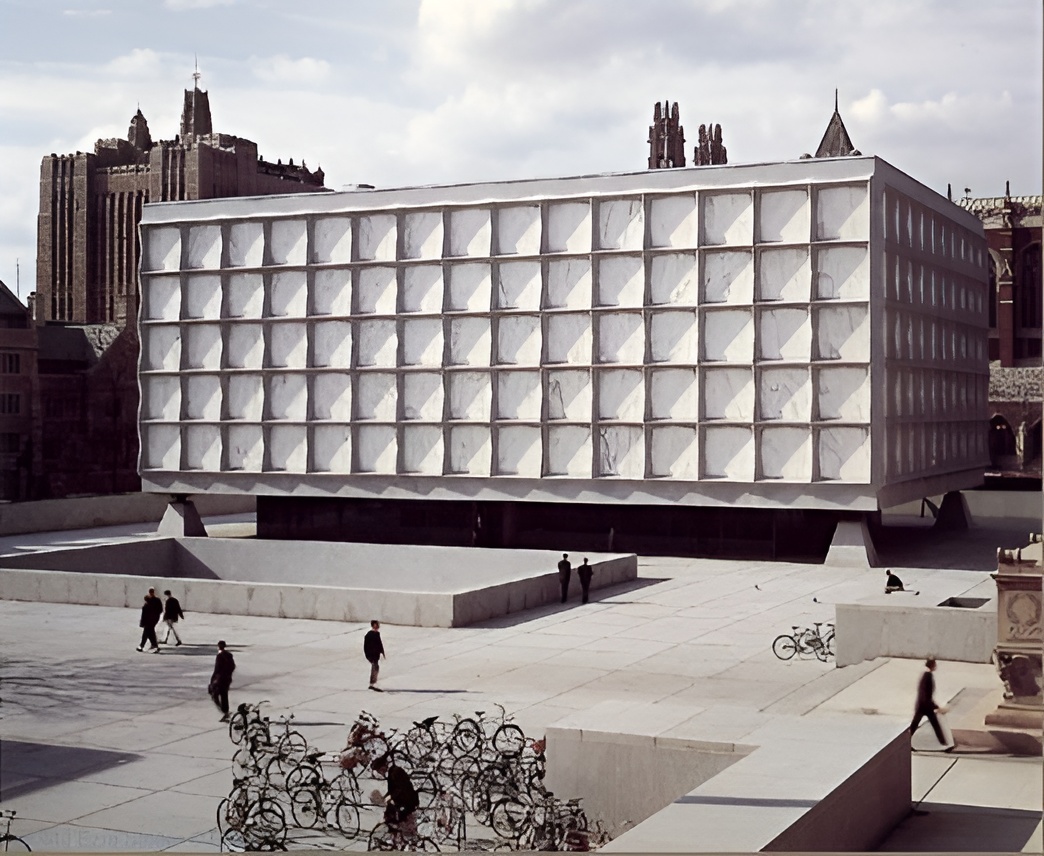

The marble panels are set within a gridded frame of light gray Vermont granite. Hidden within the granite is a system of prefabricated steel trusses that transfer the façade’s weight to four massive concrete piers located at each corner of the building. This structural solution enables the ground floor lobby to be nearly fully glazed, offering visitors in the plaza outside a view of the treasure trove of rare books housed within the library’s box-like structure.[7]

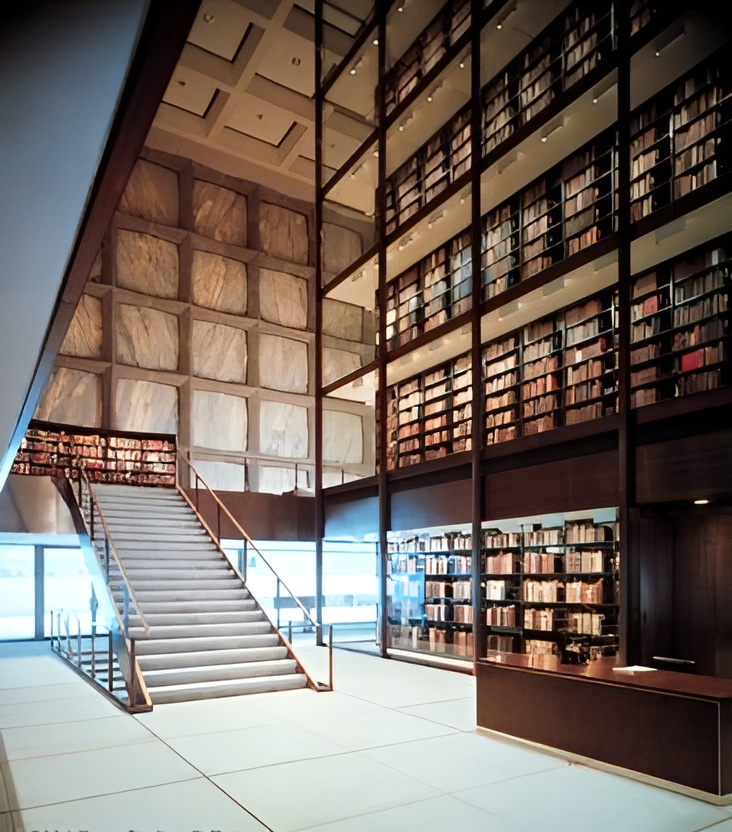

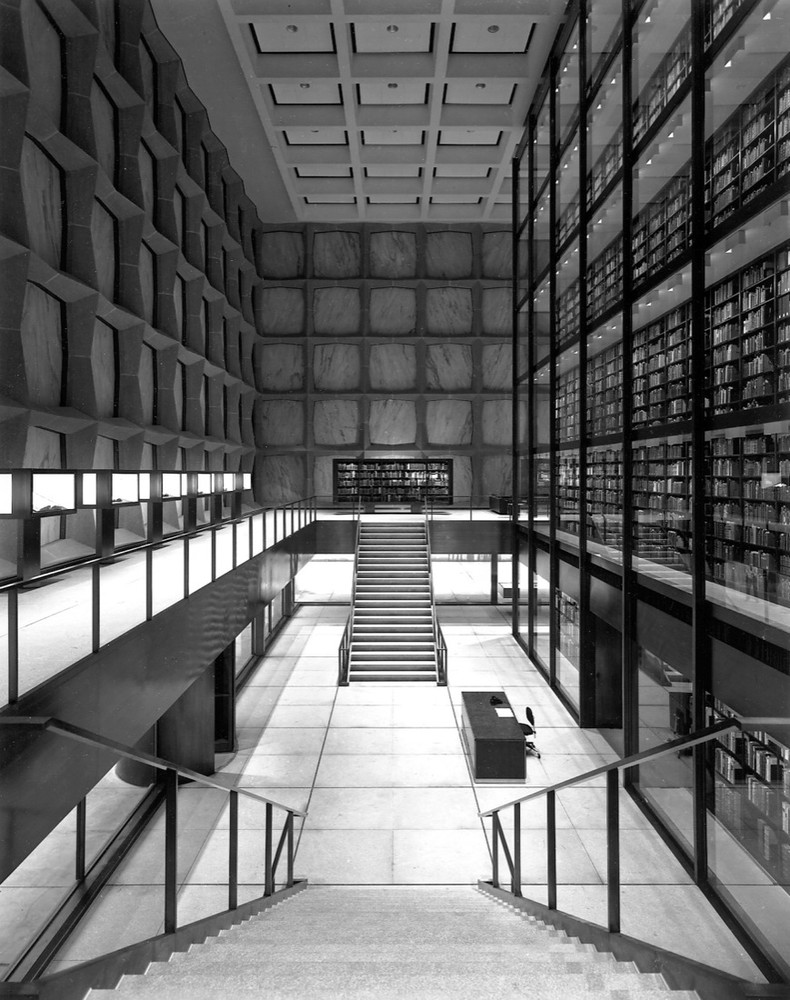

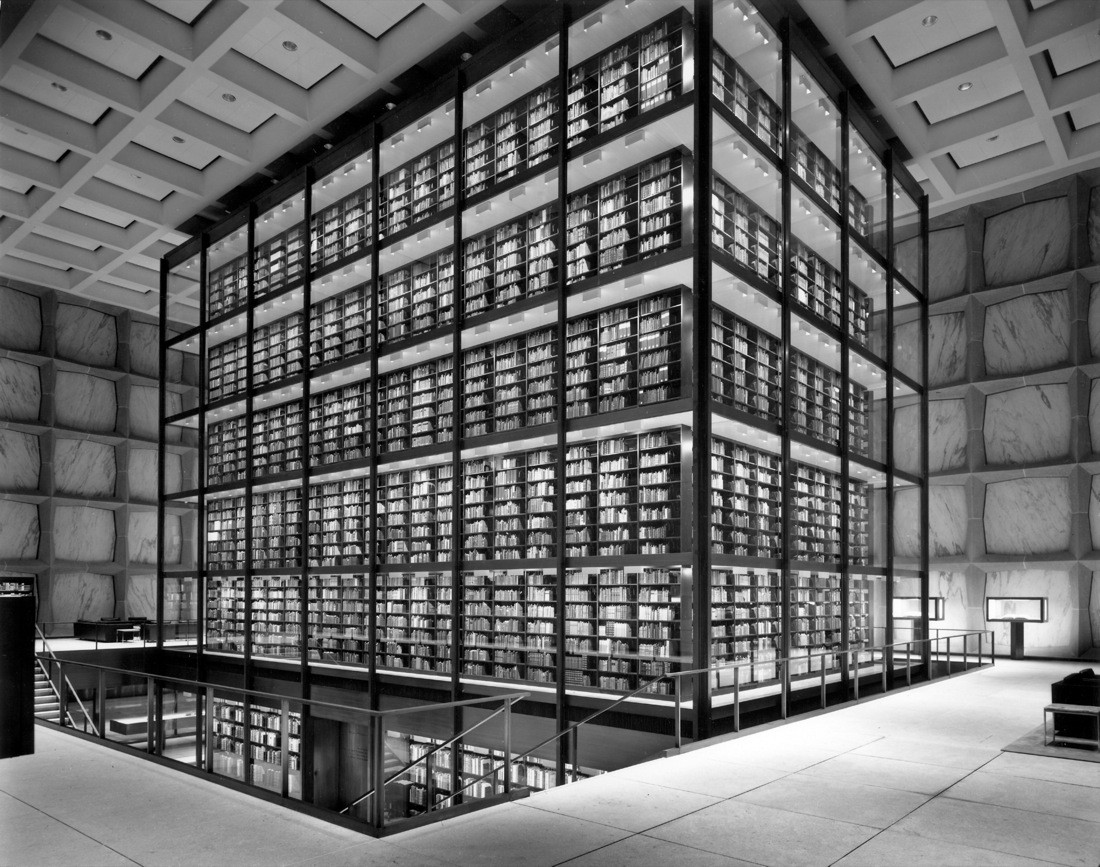

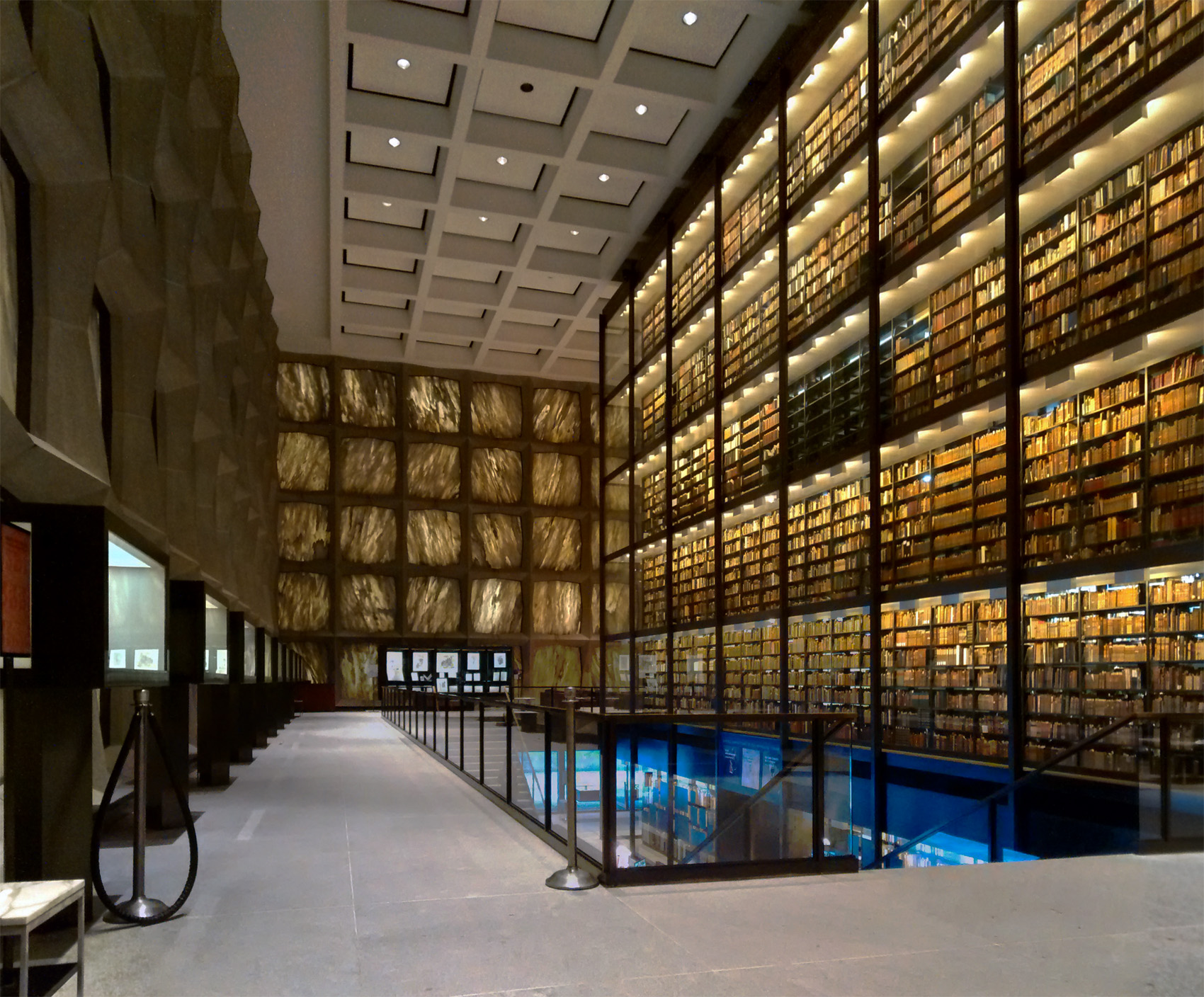

Visitors to the Beinecke Library enter through a revolving glass door at ground level. Two stairways on either side lead to the mezzanine level, while directly ahead lies the hidden centerpiece of the library. Safely enclosed within the marble shell stands a six-story glass tower, filled with stacks of rare books. Bound in leather and, in some cases, gilded, the tower holds approximately 180,000 volumes, prominently displayed yet accessible only to library staff.[8,9]

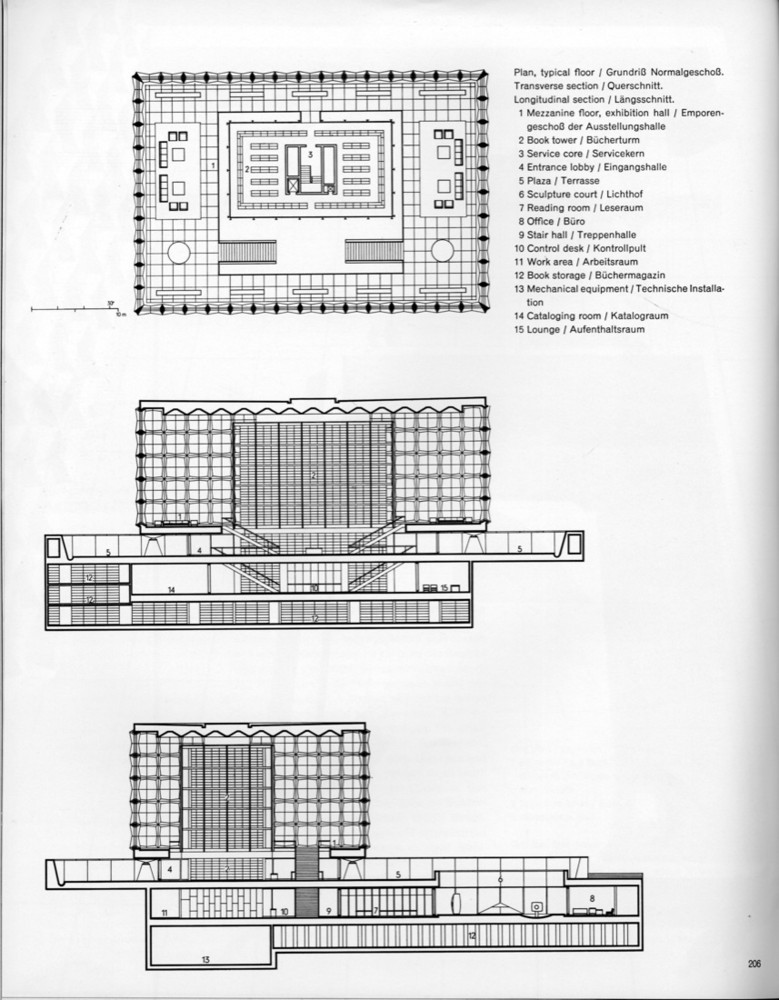

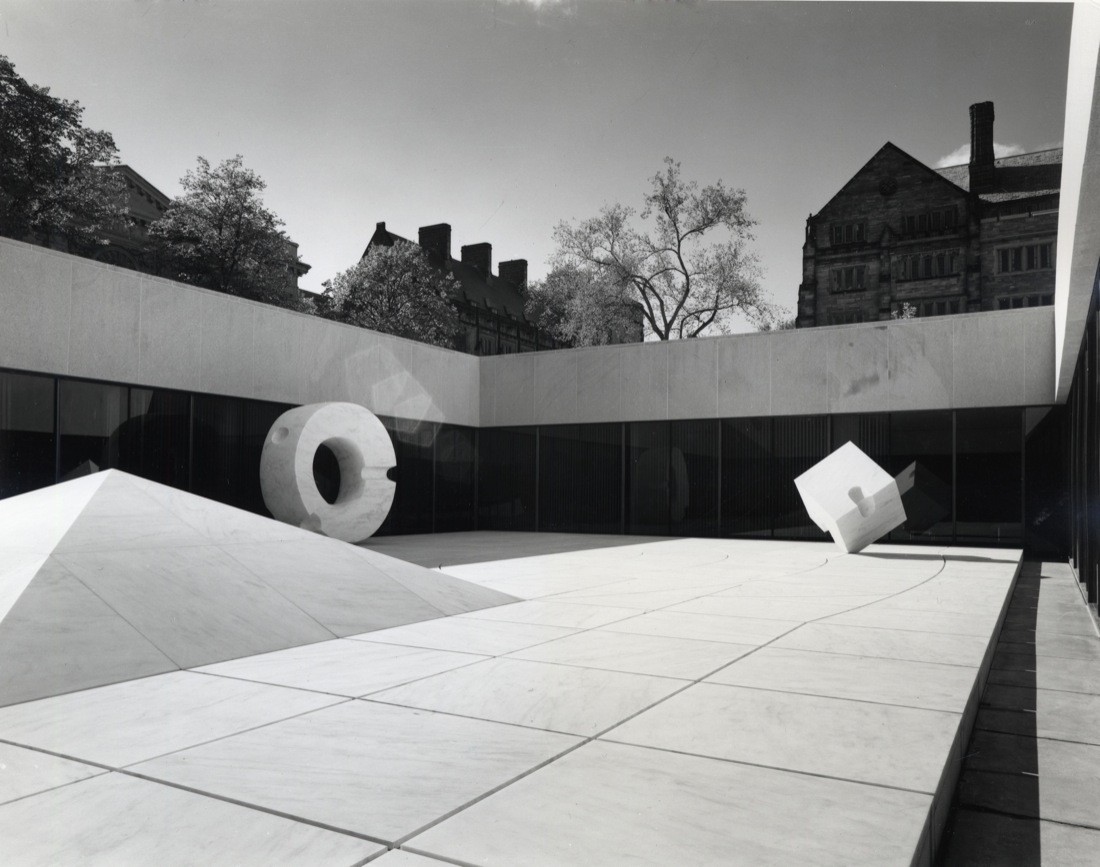

Beneath the library’s plaza are two additional floors that house the remainder of the collection, which includes 320,000 volumes and several million manuscripts. These subterranean levels also contain the library’s working spaces, such as a reading room, offices, and classrooms. Natural light reaches these lower levels through a sunken courtyard reminiscent of a cloister scriptorium. Designed by sculptor Isamu Noguchi, the courtyard features a plantless sculpture garden made entirely of white marble, honoring the library’s geometric design. Three sculpted forms occupy the space: a pyramid symbolizing the geometry of the earth and the past, a disc representing the sun, and a cube evoking chance, as with the rolling of dice.[10]

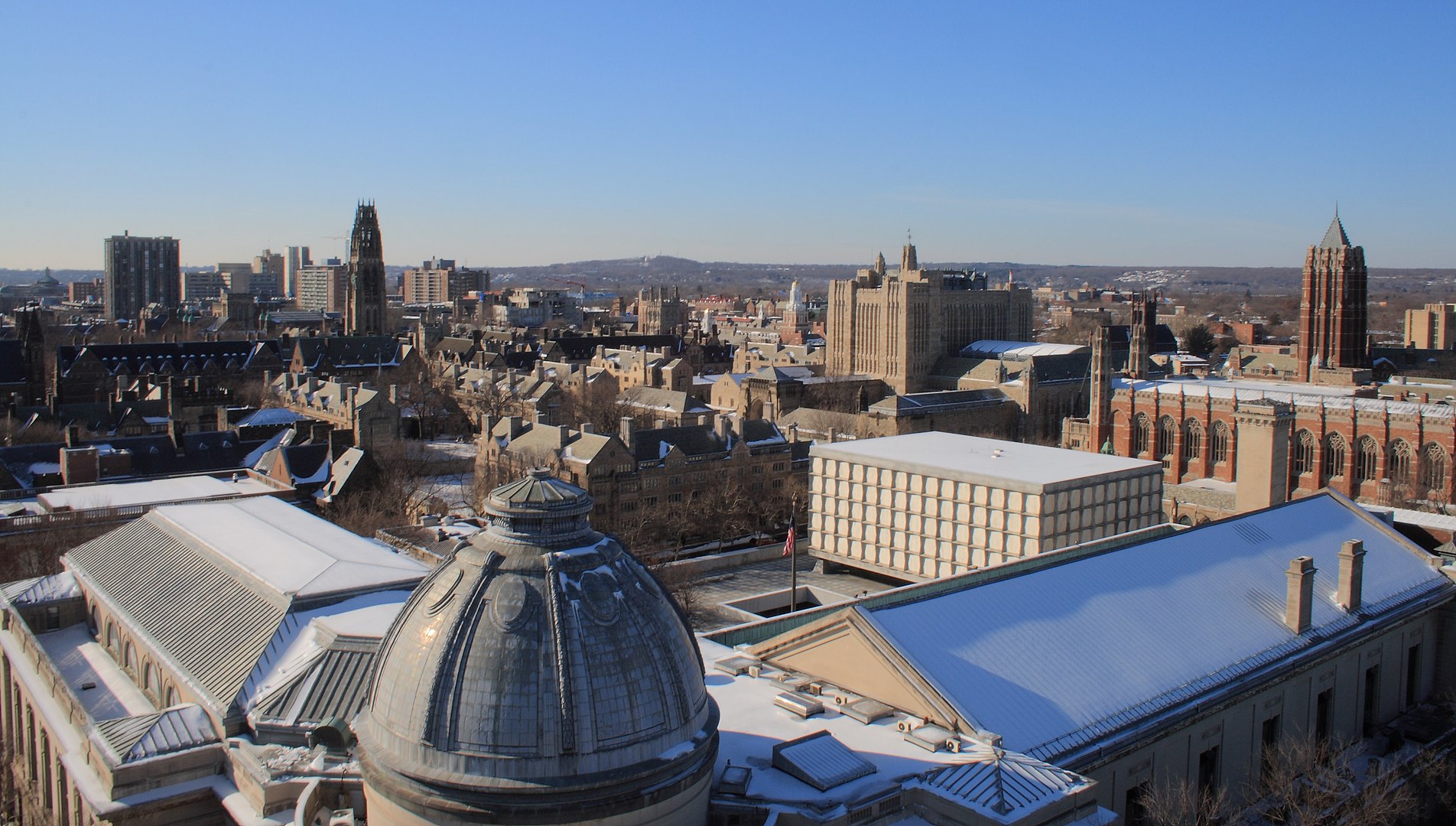

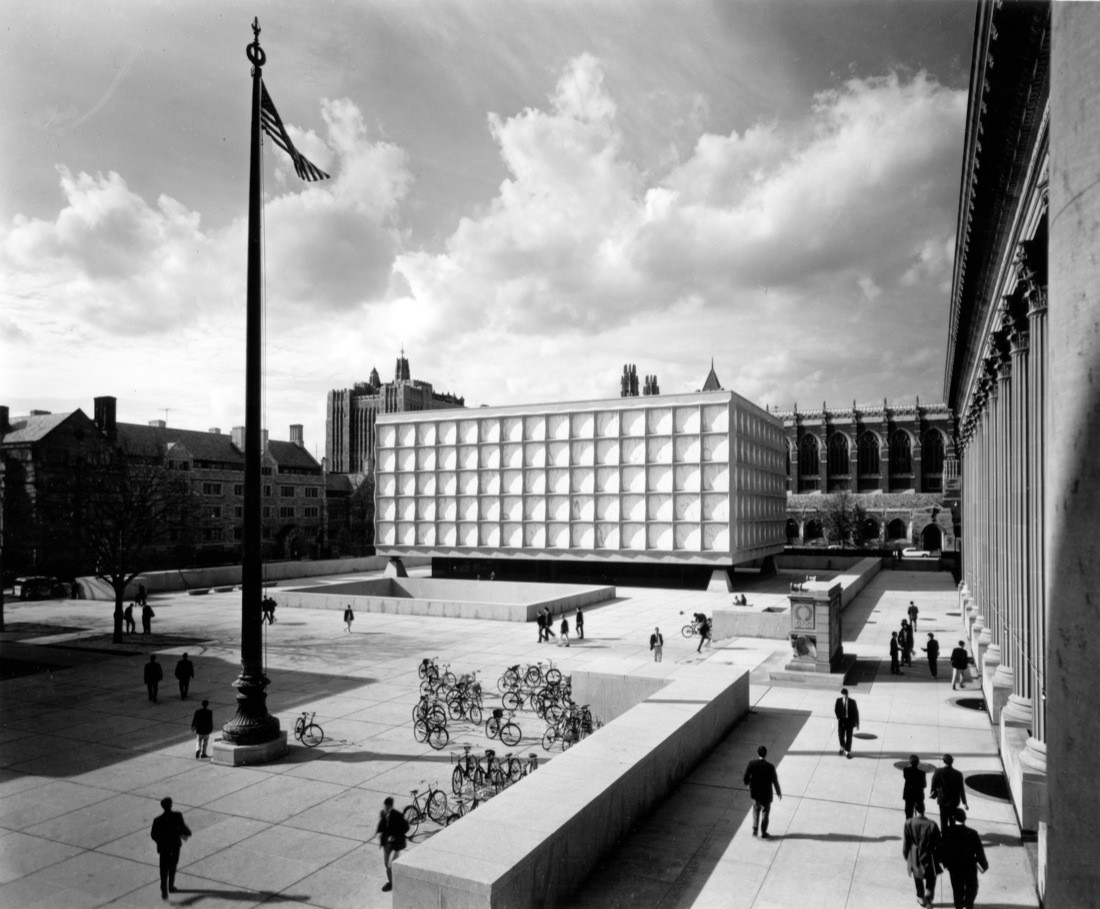

When the Beinecke Library was completed in 1963, it was met with open criticism from Yale’s librarians. In stark contrast to the surrounding Neoclassical and Collegiate Gothic architecture, the Modernist structure was derisively labeled a “floating folly.” Assistant Librarian Donald Wing described it as “an architect’s dream and our future nightmare,” while the library’s director went so far as to mark up postcards highlighting its perceived design flaws. Over the fifty years since its opening, however, these early criticisms have largely disappeared, and the Beinecke Library has become a celebrated and integral part of Yale’s campus.[11]
